4 Fans
USB 2.0
LCD Display
Fan Controller
U$S 89.99
WHERE TO BUY
LCD DISPLAY + FAN CONTROLLER
The Sentey DS1-4237 has 2 USB 2.0 Ports, a fan controller to regulate the RPM of any of the four individual fans. An LCD display, Reset and Power buttons with LED activity indicator on the front of the case.
COOLING SYSTEM
4 FANS INCLUDED
The Sentey DS1-4237 comes with four factory installed case fans that ensure proper cooling of the chassis and its hardware components. A front mounted 120mm fan plus two 120mm side fans that are specially designed to cool the graphics card, along with a rear 120mm fan that exhausts the hot air through the back.
ACCESSORIES
Mounting Screws
All mounting screws needed for assembly of components are included
PCI Slot Cover
A PCI Slot cover is included if necessary.
Speaker
Generates audible fault beeps / sounds at boot up.
Zip Ties
For cable management
AWARDS
HIGH GLOSS BLACK PAINT
This case is coated with a High Gloss Black Paint. This shiny finish gives the case a mirror and ultra sleek appearance.
EXTREME GAMING
CLOSED SIDE VIEW

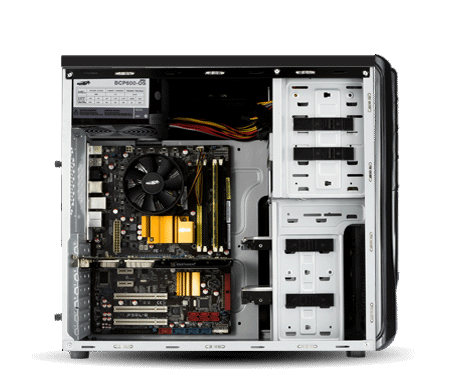

The chassis supports a ATX Motherboard, 4 optical drives, 4 internal hard drives as well as a medium- high end graphics card.

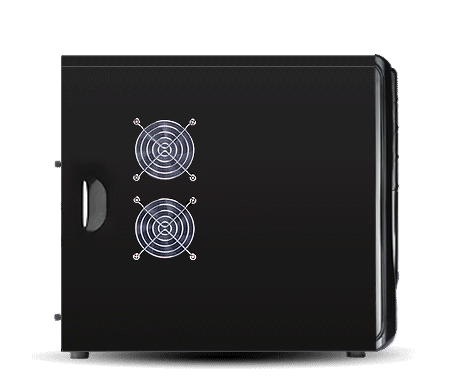

CLOSED SIDE VIEW
The side panel is a solid design that features two 80mm side fans.

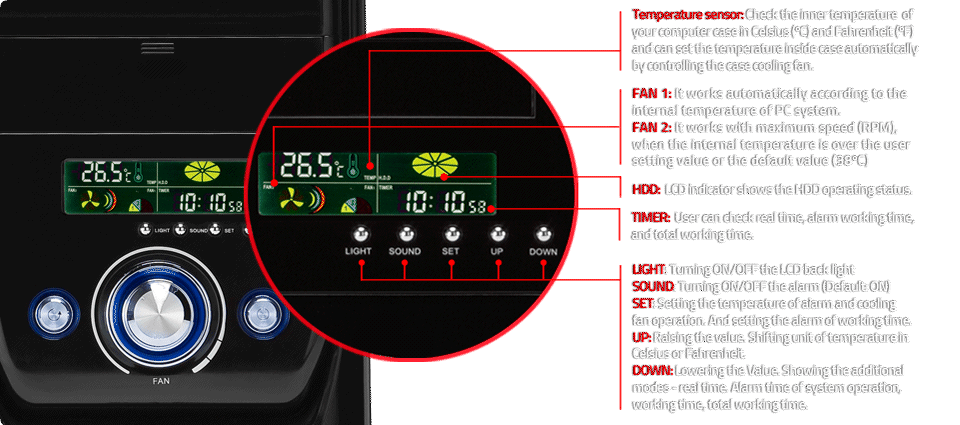

LCD DISPLAY – FAN CONTROLLER AND TEMPERATURE
The case has a powerful three-button LCD display that allows you to monitor the internal temperature of the chassis and control the two internal fans.

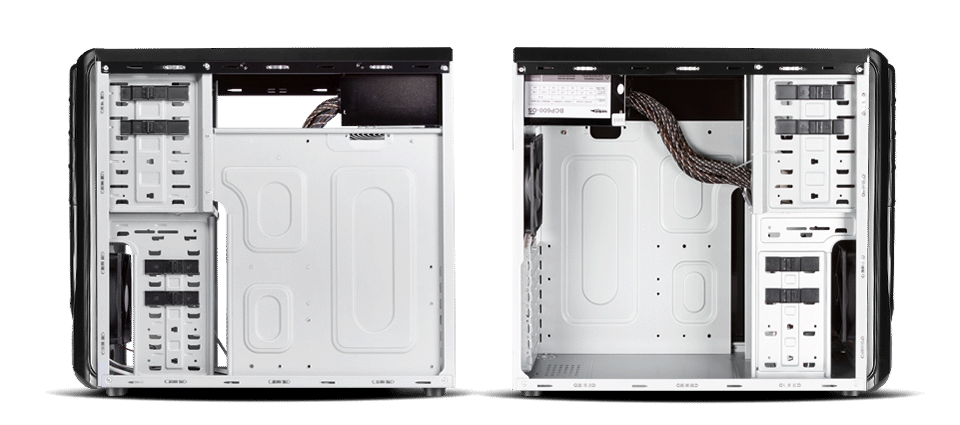

SECC 0.7MM STEEL
The case chassis is completely composed of laminated SECC 0.7MM Steel. It has a gray coating with all the edges rounded off to avoid cuts and injury during assembly.

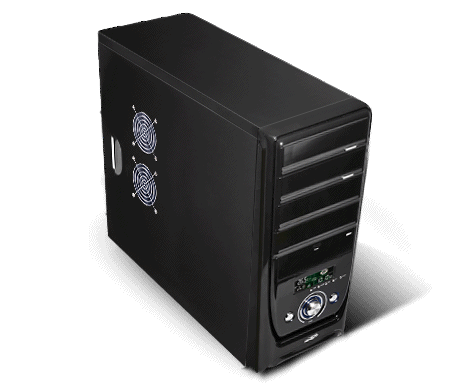

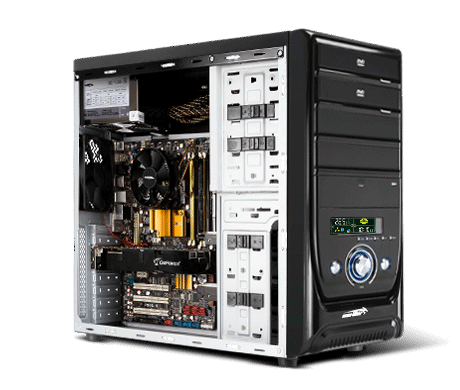

MID TOWER CASE
This case is ideal for daily use for those users that require a quality dependable computer.
Includes four fans and supports ATX, M-ATX Motherboards
FORM FACTOR: ATX / M-ATX
Supports ATX / M-ATX motherboards and has room for up to seven PCI Expansion slots, all embedded in an easy to use tool-less design.

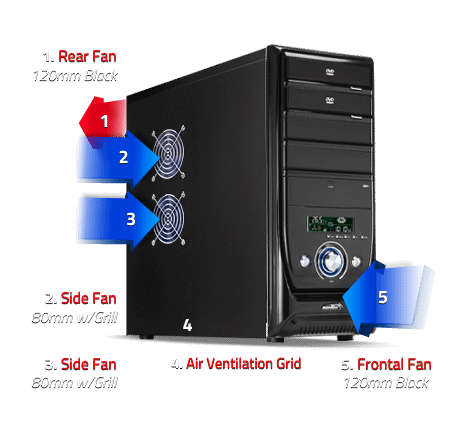

COOLING SYSTEM
The case features an innovated and forwarding thinking design that addresses the necesities of a high end user. The case is designed to maintain a low ambient temperature inside the chassis and to optimize airflow from inside and outward. In total it includes four fans.

• Front: 1x120mm fan
• Side: 2x 80mm fans
• Rear: 1x120mm fan

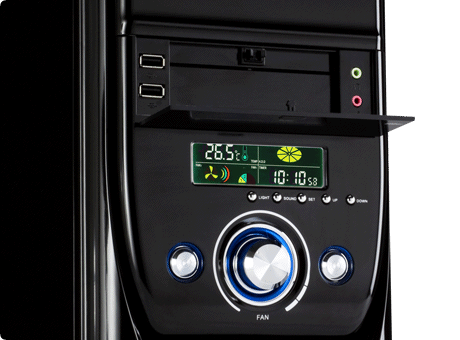

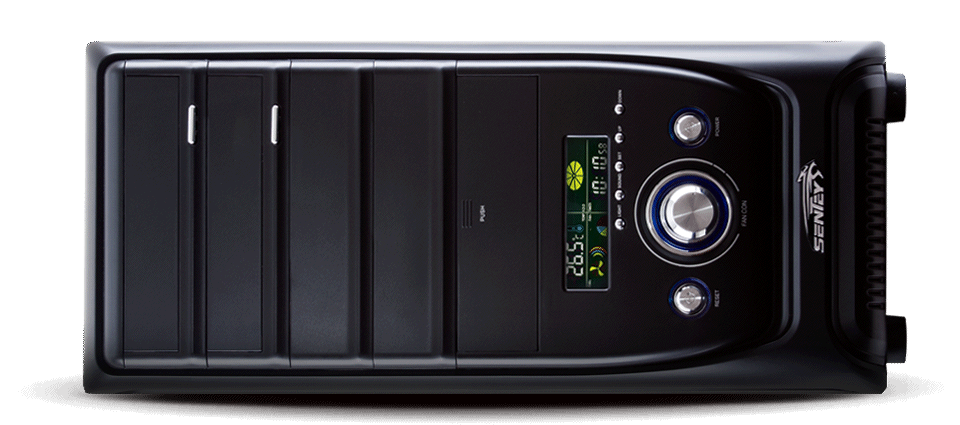

FRONT PORTS
The front of the case features easy access for all input and output ports. There is 2 USB 2.0 Ports followed by the Audio and Microphone minijacks as well as a Power button and reset button, all within reach.

• 2 USB 2.0 Ports
• Fan Controller
• LED Power Button + Reset
• AC97 Audio and Mic

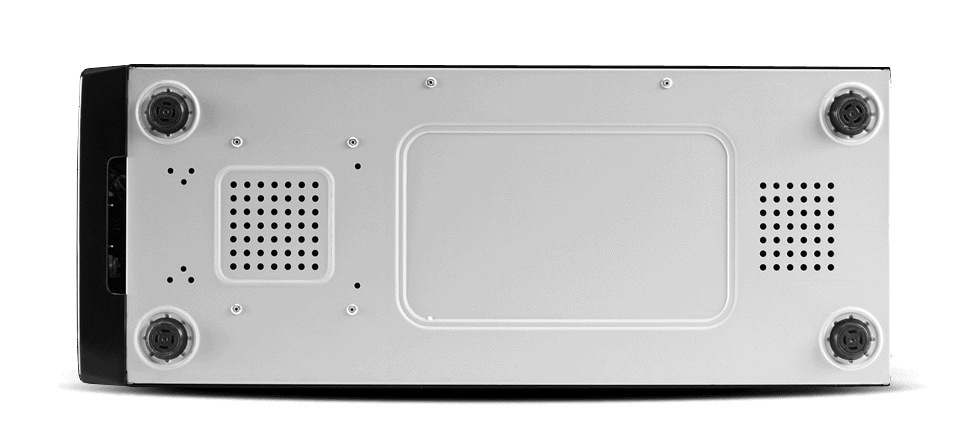

FAN GRILL OPENINGS:
1) HDD Grill
2) Rear fan Grill
POWER SUPPLY IS INCLUDED
This case comes with the BCP600-OS Power Supply included. This steel power supply features shielded cables, a 115/230 V switch that allows international usage in any region, a 120mm fan, and a On and Off switch.

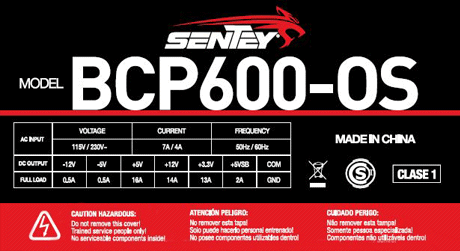

PSU INCLUDED: BCP600-OS
The BCP600-OS is a monorail design and supports up to 14A at it’s 12V main line.
Connectors: 4x SATA, 3x Molex, 1x FDD, 1xPCI-E 6 pin, 1x 4+4 pin, 12V pin, and 1 20+4 ATX mainboard connector.
SPECIFICATIONS
CASE
Name DS1-4237
Model DS1-4237
Part Number DS1-4237
Warranty 1 Year
STRUCTURE
Type Mid Tower
Color Black
Material SECC 0.7mm Steel
Motherboard Compatibility ATX, M-ATX
Power Supply Mounted Bottom
VGA Max Length 270mm
CPU Cooler Max. Size 150mm
Watercooling Support No
Motherboard Tray No
Cable Management No
EXTERIOR
Color Glossy Black
Front Glossy
Feet 15mm Plastic Feet
Side Panel Solid with Grill
Top Panel Solid
LCD Display Yes
Thumbscrews Yes
EXPANSIONS
External 5.25” Drive Bays 4
External 3.5” Drive Bays 1
Internal 3.5” Drive Bays 4
Internal 2.5” Drive Bays No
Expansion Slots 7
FRONT PORTS
USB 2.0 2
Audio AC97
E-sata No
SATA No
Card Reader No
Fan Controller Yes
COOLING SYSTEM
Front Fan 1x120mm Black Fan
Side Fan 2x80mm Black Fan
Rear Fan 1x120mm Black Fan

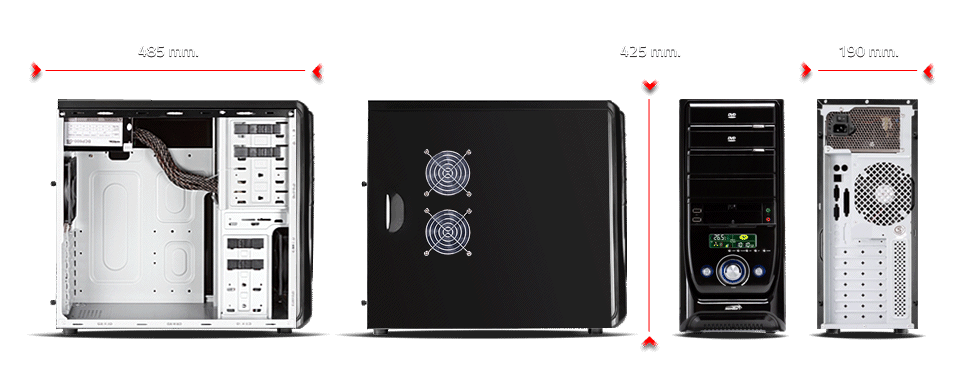

PHYSICAL SPECS
Height 440mm
Width 190mm
Length 485mm
Net Weight 4.9kg
Gross Weight 5.8kg
Packaging 500mm (L) 240mm (A) 540mm (H)
POWER SUPPLY
Model BCP600-OS
Type ATX
Connectors 4 SATA, 3 Molex, 1 PCI-E 6p, 1 FDD
EXTRAS
Dust Filter No
