2 x 120mm Blue LED
Window side panel
USB 3.0 Speed Port
LED Temperature Display
U$S .00
WHERE TO BUY
1 USB 3.0 + 3 USB 2.0 + HD AUDIO + FAN CONTROL
The Sentey Shield has 1 USB 3.0 + 3 USB 2.0 +Fan control, HD Audio as well as Reset and Power buttons on the front of the case.
COOLING SYSTEM
SUPPORTS UP TO 4 FANS. FRONT AND REAR INCLUDED.
The Sentey Shield comes with a front 120mm blue LED fan and rear 120mm led fan to displace and exhaust the hot air generated within the chassis. In total, the case allows up to 4 fans to be installed, a frontal fan, two top fans to complete the cooling system alongside the included rear exhaust fan.
ACCESSORIES
Mounting Screws
All mounting screws needed for assembly of components are included
PCI Slot Cover
A PCI Slot cover is included if necessary.
Speaker
Generates audible fault beeps / sounds at boot up.
Zip Ties
For cable management
AWARDS
SANDY BLACK MESH DESIGN
The Sentey Shield is painted a Sandy Black with a black matte texture. This excellent textured design allows the case to maintain it’s pleasing aesthetic while at the same time impeding fingerprints and other marks from ruining the case’s appearance. The front of the cabinet has a full mesh front panel including the 5.25” bays.

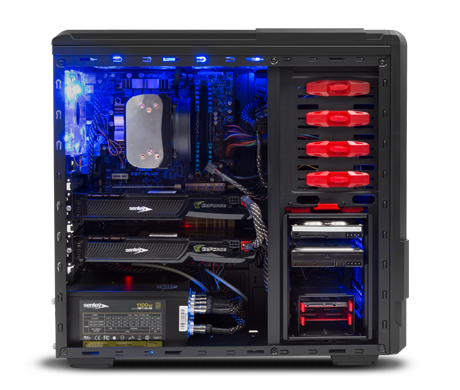

EXTREME GAMING
SIDE VIEW
The Sentey Shield supports multiple High End Graphics cards, Watercooling, SSD drives and high capacity power supplies.

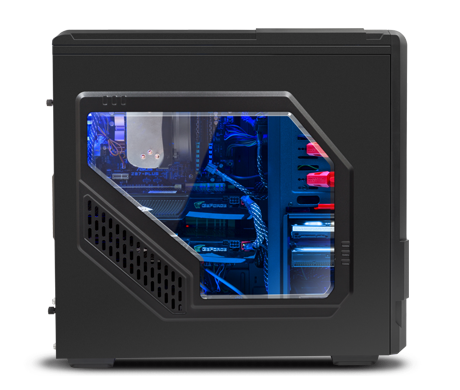

WINDOW SIDE PANEL SIDE VIEW
The side panel has a specially designed with window view.
USB 3.0 HIGH-SPEED PORT
USB 3.0 INTERNAL CONNECTOR
The case Shield includes a USB 3.0 internal connector to connect directly to the motherboard to ensure maximum data rates

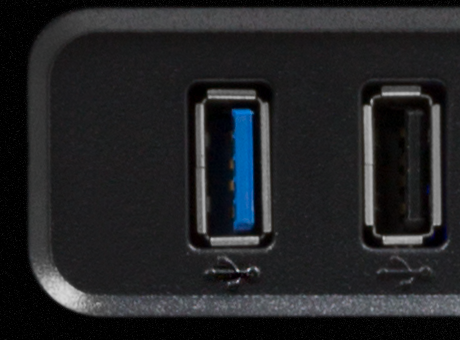

USB 3.0 FRONT PORT
This case includes a USB 3.0 high-speed port on the front panel for connecting any USB 3.0 device

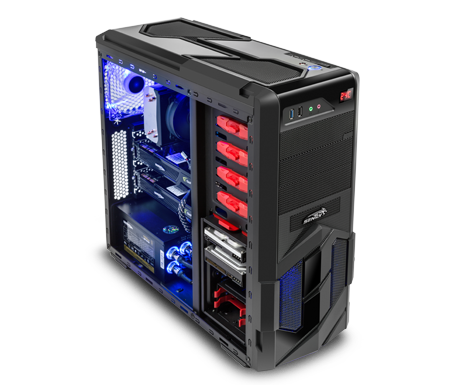

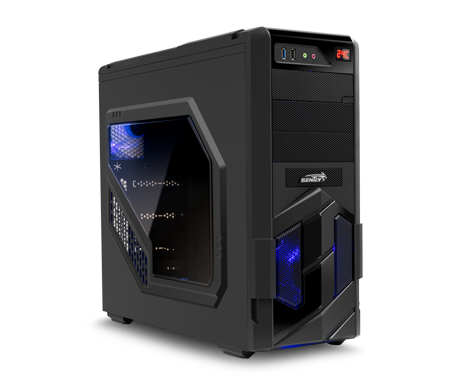

MID TOWER GAMING CASE
The Shield is a Mid Tower case with all the features necessary to be an ideal platform for Gamers or computer enthusiasts who seek a balance between cost and extreme performance.

Ready to support up to seven fans whom allow the structure to efficiently manage it’s internal cooling. Features SSD drive support, Watercooling support and much more.
Dotado de varios coolers incluidos que permiten manejar de manera eficiente la refrigeración interna del chasis, reguladores de fan, card readers, HD Audio, soporte para discos SSD, soporte de watercooling y muchas cosas más.
FORM FACTOR: ATX / M-ATX
Sentey Shield supports ATX / M-ATX motherboards and has room for up to seven PCI Expansion slots, all embedded in an easy to use tool-less design.

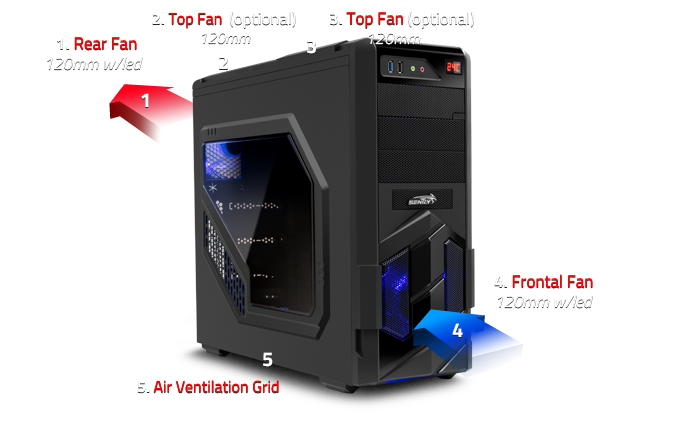

COOLING SYSTEM
The Sentey Shield is a forward thinking and innovative design that addresses both the needs of a high end gamer and of a computer enthusiast. The case is designed to maintain a low ambient temperature inside the chassis and to optimize airflow from inside and outward.

The Sentey Blade supports up to 4 fans.

• Front: 1x120mm Blue LED fan
• Rear: 1x120mm Blue LED fan
• Top Panel: 2x120mm fans (optional)

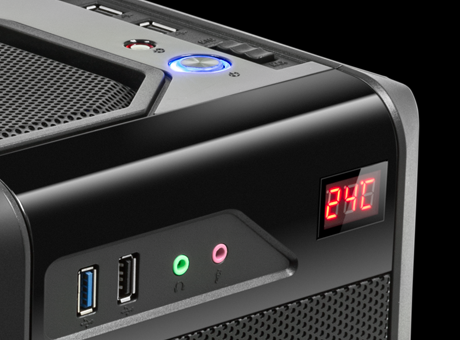

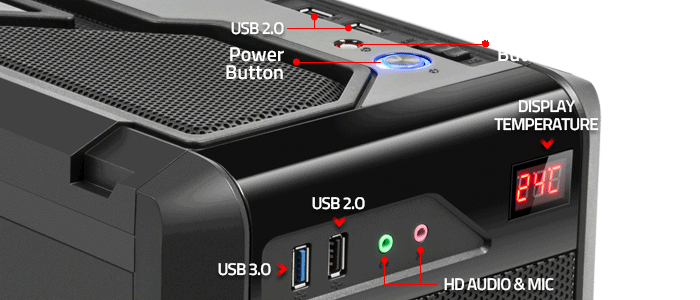

FRONT PORTS
The Shield front panel have features ideally placed buttons and ports for easy access. All Input / Output ports are within reach. A USB 3.0 port + a USB 2.0 are accompanied by HD Audio and microphone ports. The power button and reset buttons, all very accessible to the user. The power button is centrally located in the front of the case.

• 1 USB 3.0 + 1 USB 2.0 Port
• HD Audio and Mic.
• LED Power button + Reset button
HIGH END GRAPHICS CARD SUPPORT
SUPPORTS UP TO 340MM LONG GRAPHICS CARDS
The case’s long length accommodates up to three HIGH END dual slot video cards that are 340mm long without any problem, thus satisfying even the most demanding gamer.
CPU COOLERS THAT ARE UP TO 150MM IN HEIGHT ARE SUPPORTED
It is increasingly common to use high-end CPU coolers whose height is larger than the standard included cooler. The case has capacity for coolers up to 150mm tall.
PSU MOUNTING
The power supply is mounted on the bottom rear of the case. There is a 120mm fan grill that allows the power supply to exhaust air from the bottom of the case, or mount the power supply up and intake air from inside the case. This versatility allows the case to be compatible with any power supply form factor in the market today. Playing the power supply fan downwards aligns it with the fan grill below that allows air to flow in an optimal way that prevents hot air from the power supply to enter the cabinet.

Power supply size is also not a problem for this case. Because of it’s location within the chassis, you can install even an extra large sized power supply without any problems.
TOOL-LESS DESIGN, QUICK TO INSTALL
PLASTIC TOOL-LESS BRACKETS
Allow the installation of 5.25” drive bay units, such as a BluRay optical drive to be mounted without the use of any tools.
HDD TRAYS
Allow the quick installation of 3.5'' HDD’s.
PCI LOCKS
Allow the quick installation of 2.5'' SSD’s.

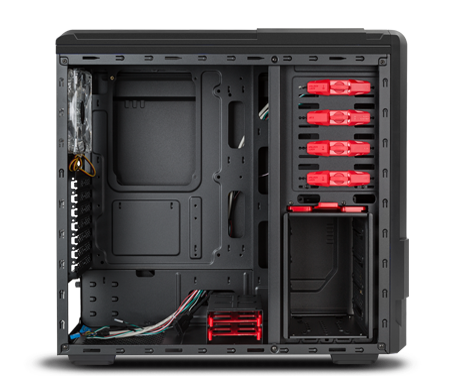

CABLE MANAGEMENT AND MOTHERBOAD TRAY LAYUOT
The Sentey Blade features cables that can be optimally routed behind the plate behind the motherboard tray, thus allowing the entire system to have a much more cleaner look. While also facilitating the proper circulation of air throughout the case. The motherboard tray window allows the CPU Cooler to be removed for cleaning and / or replacement without having to unmount the motherboard. This feature saves alot time in assembling and testing the components.

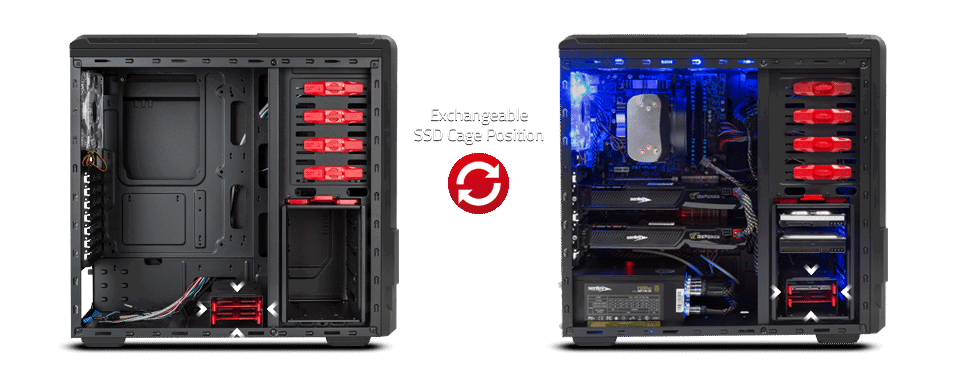

EXCHANGEABLE SSD CAGE
The Blade case has a SSD drive cage that can be moved to place a video card of 340m.
SPECIFICATIONS
CASE
Name Shield
Model GS-6090
Part Number GS-6090
Warranty 1 Year
UPC 00812366020659
STRUCTURE
Type Mid Tower
Color Black
Material SGCC Steel
Motherboard Compatibility ATX, M-ATX
Power Supply Mounted Bottom
VGA Max Length 340mm
CPU Cooler Max. Size 150mm
Watercooling Support Yes, Dual Tube Passthrough
Motherboard Tray Yes
Cable Management Yes
EXTERIOR
Color Black
Front Mesh
Feet 15mm Plastic Feet
Side Panel Mesh
Top Panel Windows
LCD Display LED
Thumbscrews Yes
EXPANSIONS
External 5.25” Drive Bays 3
External 3.5” Drive Bays 1
Internal 3.5” Drive Bays 4
Internal 2.5” Drive Bays 2
Expansion Slots 7
FRONT PORTS
USB 3.0 1
USB 2.0 3
Audio HD Audio
E-sata No
SATA No
Card Reader No
Fan Controller Yes
COOLING SYSTEM
Front Fan 1x120mm Blue LED Fan
Side Fan No
Top Fan 2x120mm (Optional)
Rear Fan 1x120mm Blue LED Fan

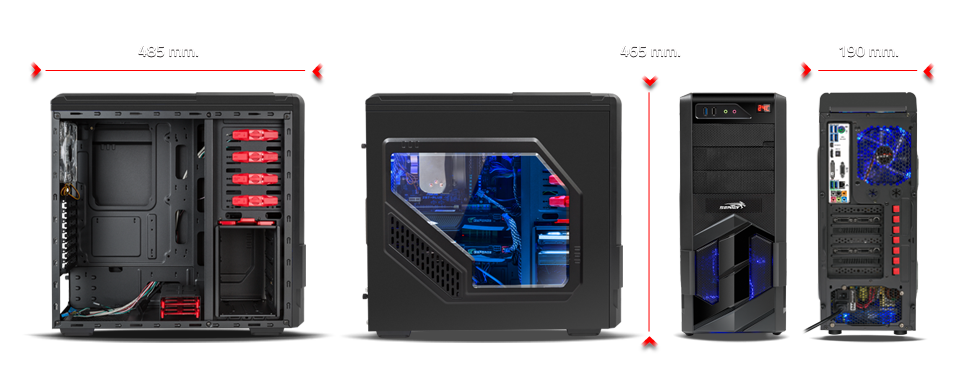

PHYSICAL SPECS
Height 465mm
Width 190mm
Length 485mm
Net Weight 6.6kg
Gross Weight 7.6kg
Packaging 500mm (L) 240mm (A) 540mm (H)
