3 Year Warranty
Multiple Safeguards
Fan 140mm Sleeve Bearing
Single Rail +12V
U$S 40.97
WHERE TO BUY

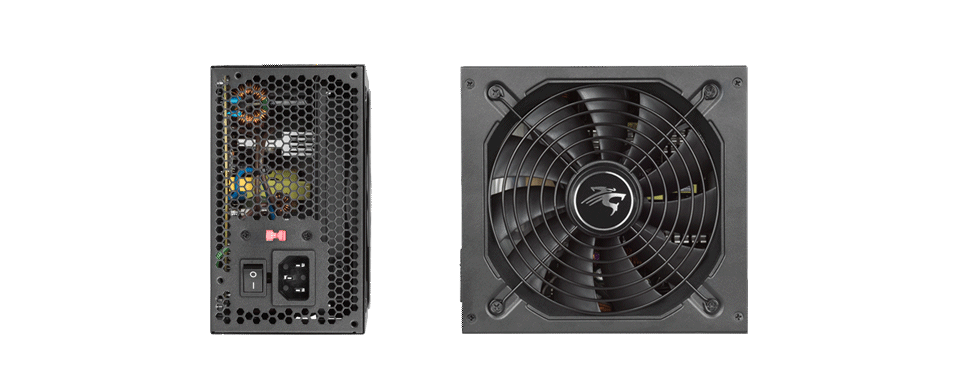

XPP725-HS - REABLE DESIGN
The X Plus Power Series is designed to be powerful featuring real continuous power output. With it’s high efficiency and robust ability to handle even the largest power loads by the latest generation graphic cards. The XPP Series is the power supply to beat. It features multiple safeguards to prevent any damage to any of the connected devices.
AWARDS
SAFETYs
SANDY BLACK PAINTING FINISH
The XPP725-HS Series features a special Sandy Black scratch resistant coating that combined with it’s ample connectors provide a pleasing and imposing aesthetic with a unique and functional design that combines modern aesthetics with the power of a high-end product, the XPP Series is fit for even the most demanding users.
140MM SLEEVE BEARING FAN
INTELLIGENT FAN CONTROL SYSTEM
The XPP Series of Power Supplies utilize a 140mm Sleeve Bearing fan that automatically adjusts it’s speed to provide just the right amount of air flow, and balances noise for optimal operation. This variance in speed allows for lower noise and avoids unnecessary dB’s when the computer is not tasked or idle. The Sleeve Bearing Fan is designed for long continuous operation and have a longer service life compared to conventional fans.
ROBUST DUAL +12V RAIL
The X Plus Power Series features a single dedicated +12V rail, that simplifies component installation by having all the power on a single line, avoiding having to manually balance component load on multiple rails, thus providing greater compatibility and is ready for the latest generation of graphic cards.
MULTI SAFEGUARD DESIGN
The XPP series features multiple safeguards such as over voltage protection, under voltage protection, overload protection and short circuit protection which when triggered activate to protect the power supply. They automatically shut down the power supply to prevent damage to your system and any attached devices. Ensuring safe safe and reliable operation. With an unbeatable 3 year warranty. The XPP Series solidifies itself as a high-end product.
SLEEVED CABLES
The native sleeving on the X Plus Power (XPP) protect the cables and prolong their service life by offering more useful and adequate insulation for mounting the cables inside the case. The Nylon micro mesh fabric allows excellent ventilation which helps avoid any overheating issues.
CONNECTORS
XPP725-HS’s Total Connectors
CONNECTORS DIAGRAM
Native cable connectors distribution diagram.

SPECIFICATIONS LABEL
AC Input and DC Output voltage values per rail

SPECIFICATIONS
GENERAL
Series XPP
Model XPP725-HS
Part Number XPP725-HS
UPC 00812366023261
Warranty 3 Years
AC INPUTS
AC Input Current (A) 10/5A
AC Input Frequency (Hz) 50-60Hz
AC Input Voltage (Vac) 115/230Vac
Efficiency Typical Load 75%
LOAD RANGE
Max Output Power (W) 725 W
Max -12V Output Current (A) 0,5 A
Max -12V Power (W) 6 W
+12V Rail Single
Max +12V1 Output Current (A) 48 A
Max +12V1 Power (W) 576W
Max +3.3V Output Current (A) 22 A
Max +5V Output Current (A) 22 A
Max +3.3V & +5V Power (W) 120 W
Max +5VSB Output Current (A) 2.5 A
Max +5VSB Power (W) 12.5 W
CONNECTORS
Motherboard 20+4pin 1
CPU +12V 4+4pin 1
SATA 5pin 5
Molex 4pin 3
Floppy 4pin 1
PCI-E 6+2pin 2
PHYSICAL SPECS
Cooling Fan Size 140mm Sleeve Bearing
Dimensions 160mm (L) x 150mm (W) x 86mm (H)
Net Weight 1,65 Kg
Painting Finish Sandy Black
Form Factor ATX
Gross Weight 2,1 Kg
Pack Dimensions 265mm (L) x 195mm (W) x 100mm
PROTECTIONS
Over Power Protection (OPP) Yes
Over Voltage Protection (OVP) Yes
Short Circuit Protection (SCP) Yes
Under Voltage Protection (UVP) Yes
TECHNOLOGIES & FEATURES
AMD Crossfire Ready
NVIDIA SLI Ready
Sleeve Cables Yes
Power Cord Certified Yes
CERTIFICATIONS & STANDARDS
Type ATX 2.3
RoHs Yes
C-tick Yes
CB Yes
