Sentey :: Eagle Plus GS-6020 Plus

Window side panel

Support SSD HDD

USB 3.0

Aluminun HDD/SSD Cage

ONDE COMPRAR

VISTA GERAL
CARACTERÍSTICAS
ESPECIFICAÇÕES
GALERIA
TESTES
SUPORTE

1 USB 3.0 + 1 USB 2.0 + HD AUDIO

The Sentey Eagle Plus has 1 USB 3.0 + 1 USB 2.0, HD Audio as well as Reset and Power buttons on the front of the case.

MAIS DETALHES

COOLING SYSTEM

The Sentey Eagle Plus comes with a front 120mm blue LED fan and rear 120mm led fan to displace and exhaust the hot air generated within the chassis. In total, the case allows up to 5 fans to be installed, a frontal fan, two top fans, and one bottom fan, to complete the cooling system alongside the included rear exhaust fan.

MAIS DETALHES

ACESSÓRIOS

Mounting Screws

All mounting screws needed for assembly of components are included

PCI Slot Cover

A PCI Slot cover is included if necessary.

Speaker

Generates audible fault beeps / sounds at boot up.

Zip Ties

For cable management

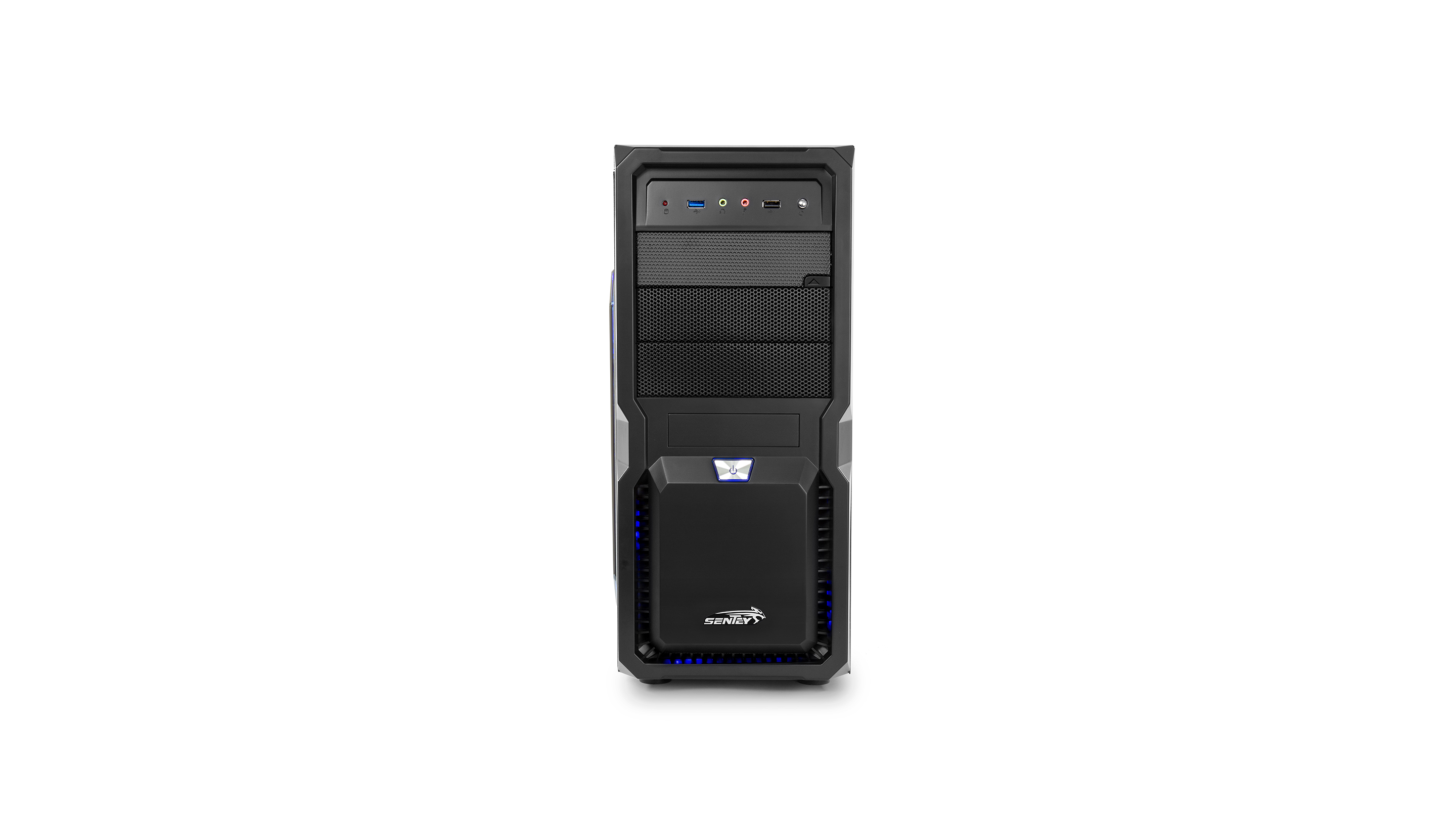

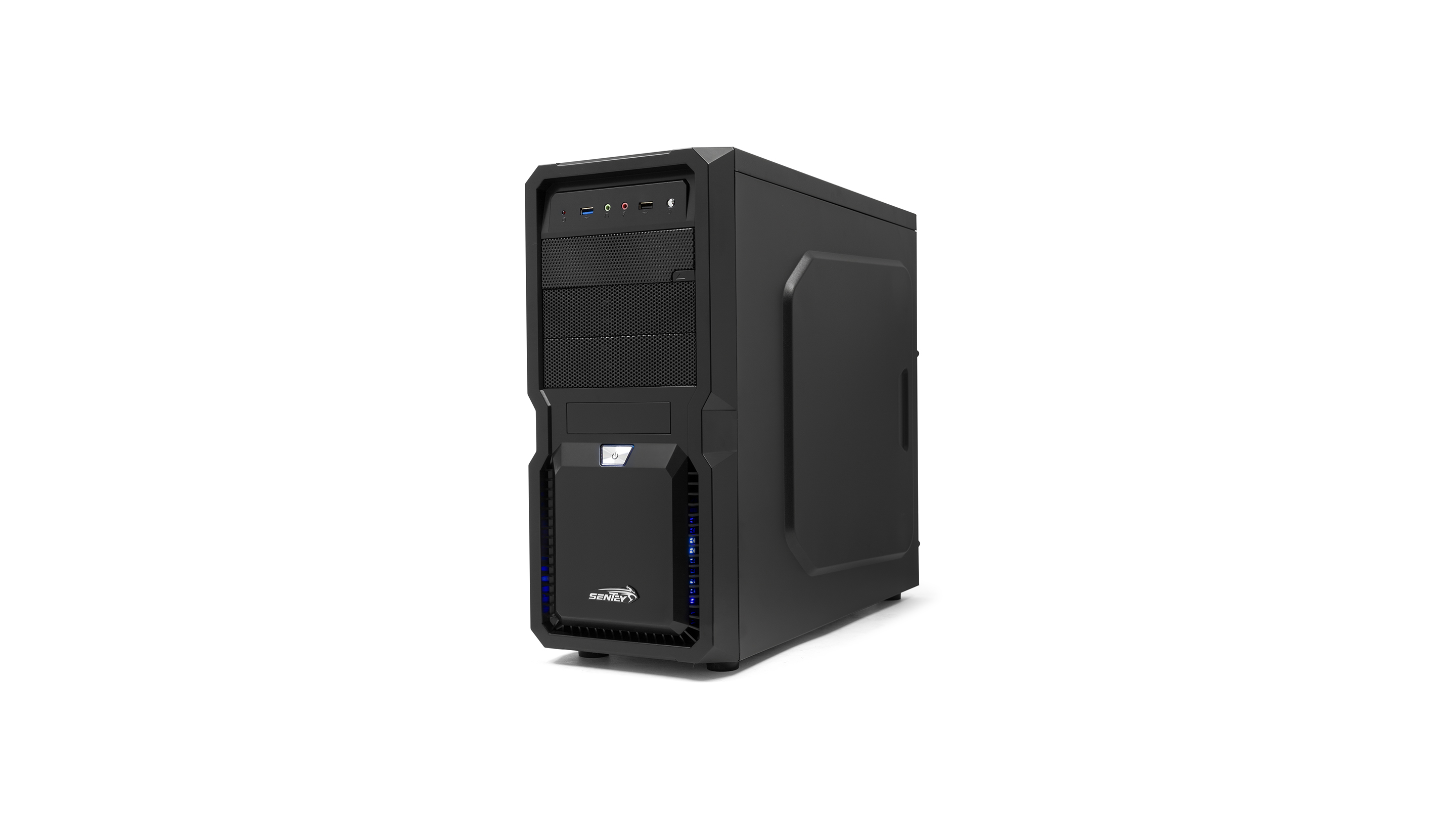

SANDY BLACK MESH DESIGN

The Sentey Eagle Plus is painted a Sandy Black with a black matte texture. This excellent textured design allows the case to maintain it’s pleasing aesthetic while at the same time impeding fingerprints and other marks from ruining the case’s apperance. The front of the cabinet has a full mesh front panel including the 5.25” bays.

EXTREME GAMING

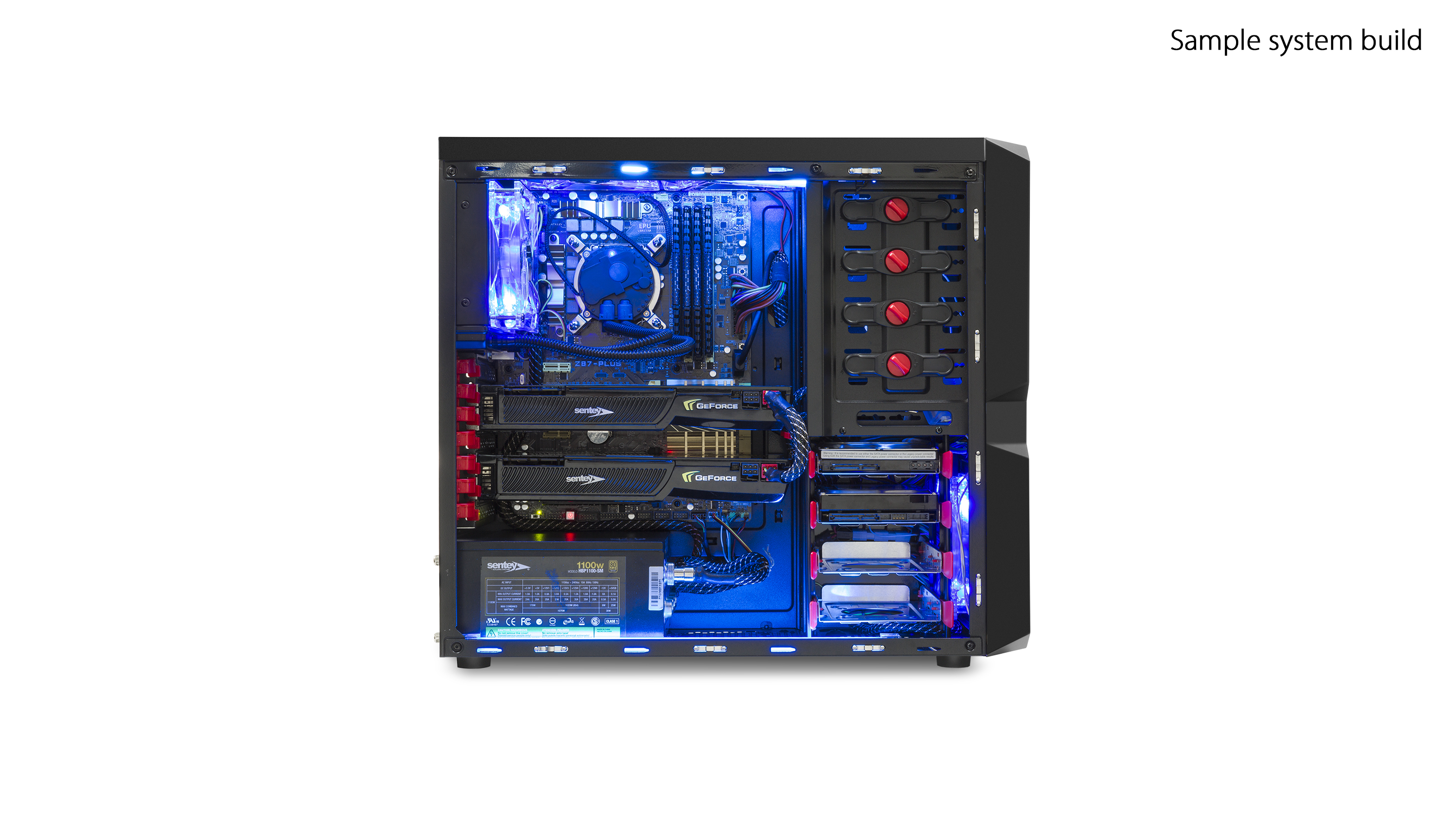

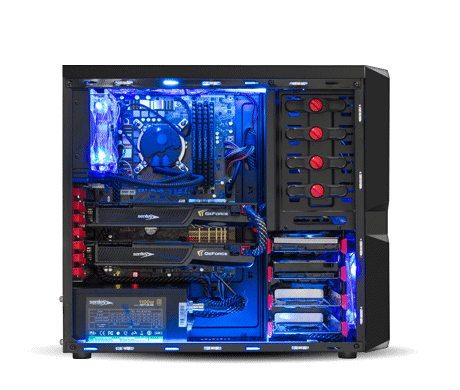

SIDE VIEW

The Sentey Seeker supports multiple High End Graphics cards, Watercooling, SSD drives and high capacity power supplies.

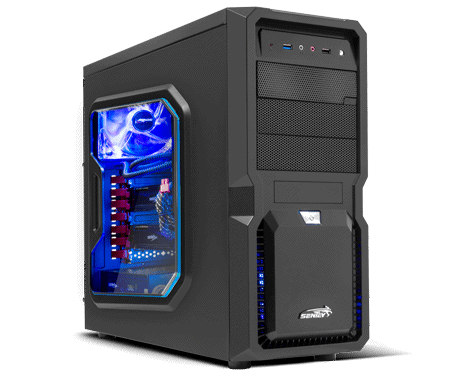

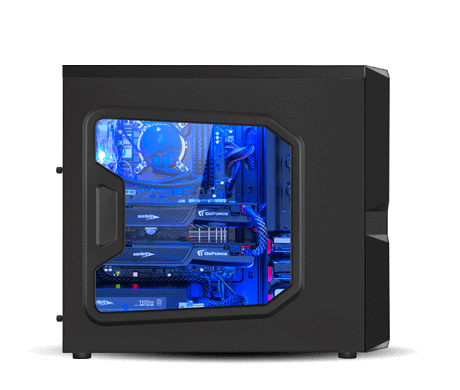

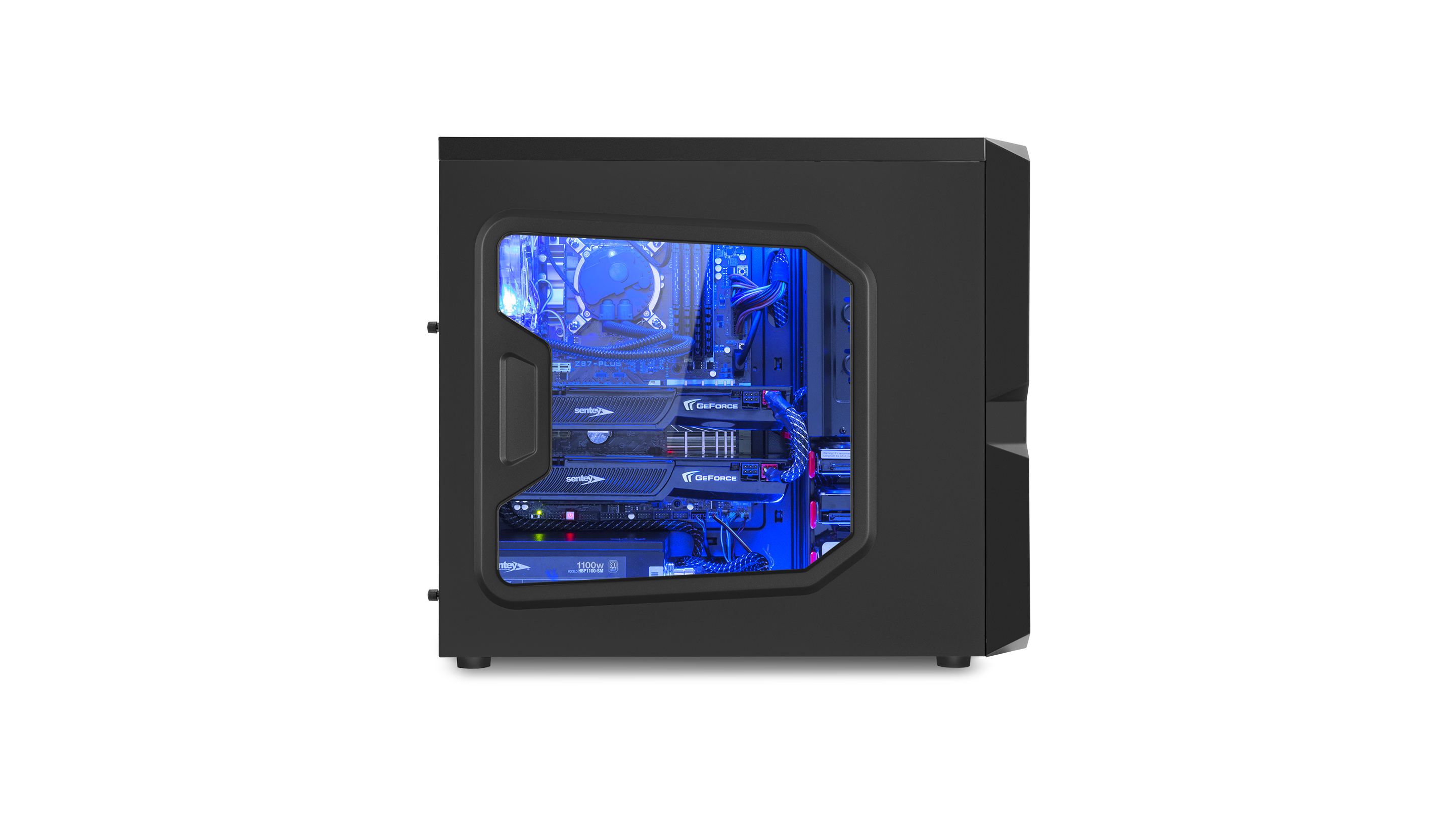

WINDOWS SIDE PANEL SIDE VIEW

The side panel has a specially designed with windows.

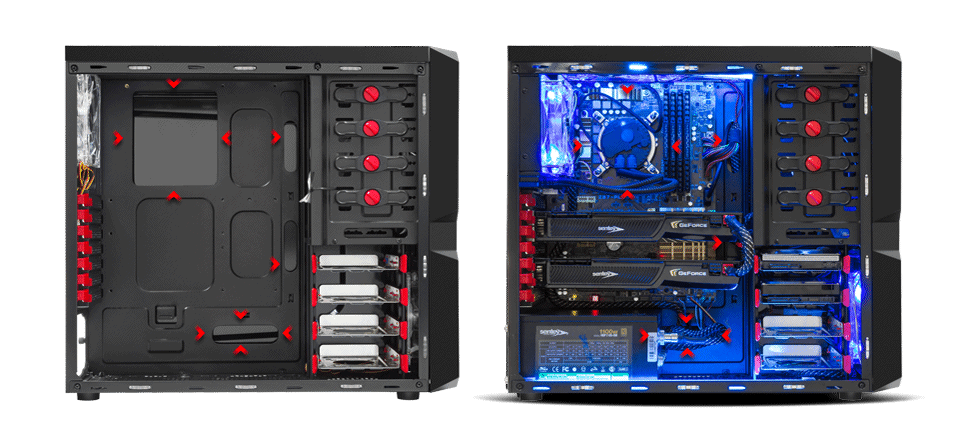

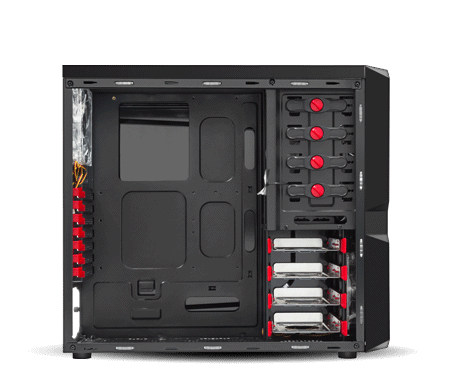

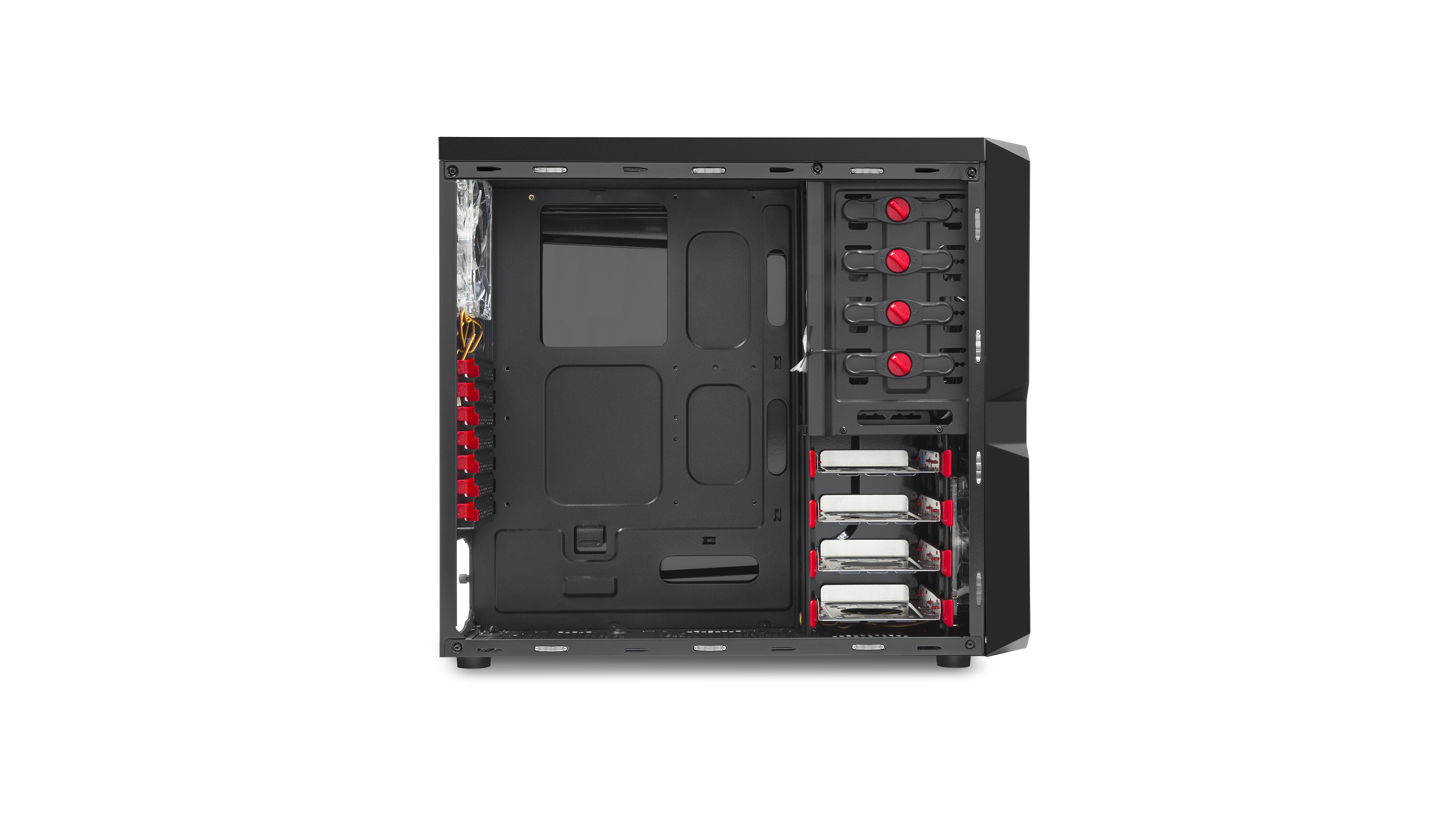

CABLE MANAGEMENT AND MOTHERBOARD TRAY LAYOUT

The Sentey Eagle Plus features cables that can be optimally routed behind the plate behind the motherboard tray, thus allowing the entire system to have a much more cleaner look. While also facilitating the proper circulation of air throughout the case. The motherboard tray window allows the CPU Cooler to be removed for cleaning and / or replacement without having to unmount the motherboard. This feature saves alot time in assembling and testing the components.

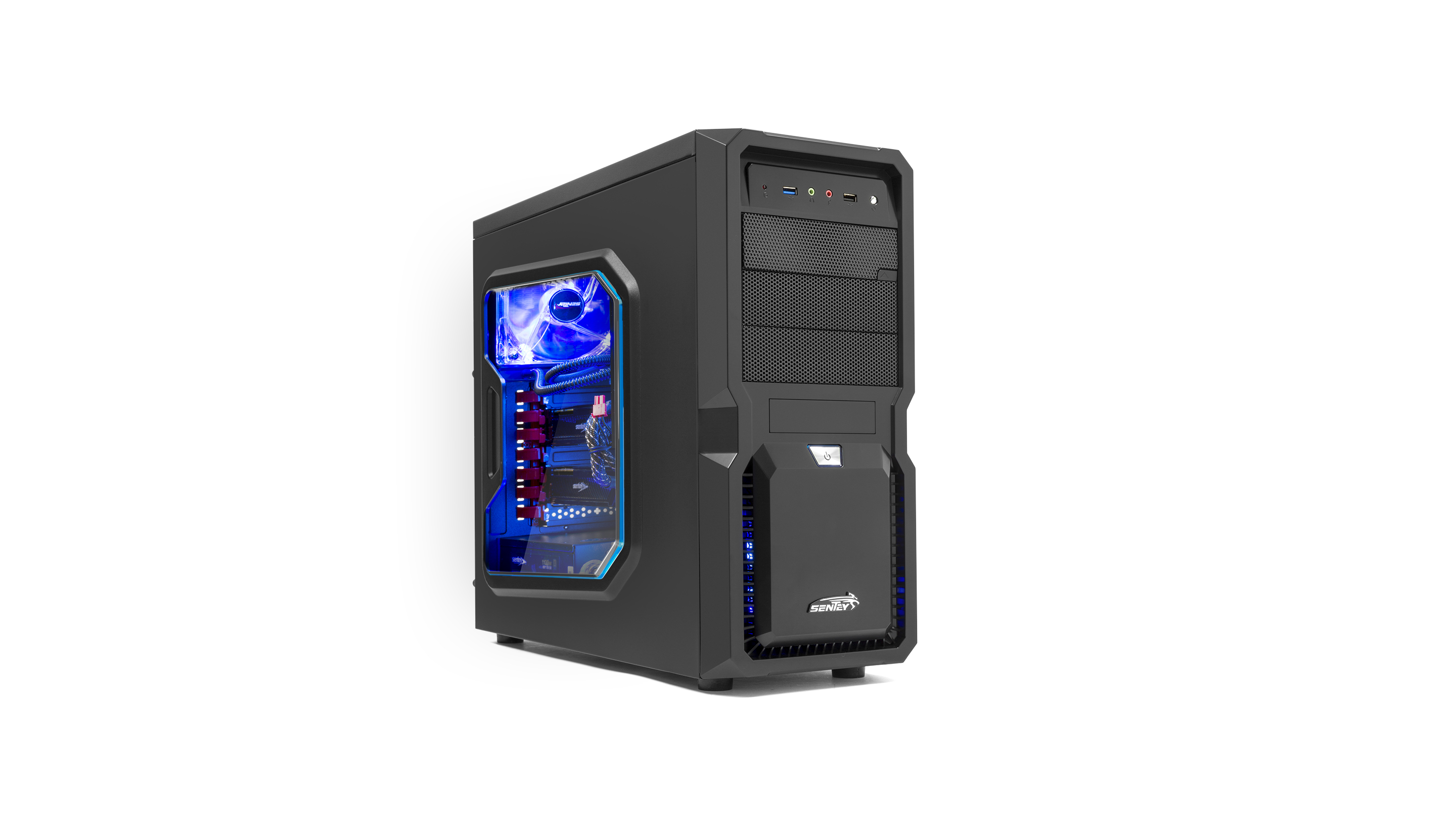

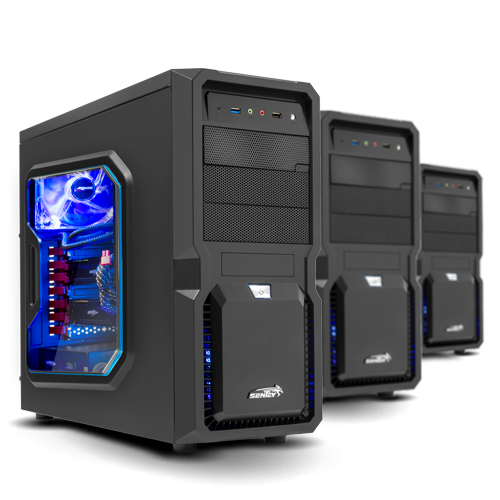

MID TOWER GAMING CASE

The Eagle Plus is a Mid Tower case with all the features necessary to be an ideal platform for Gamers or computer enthusiasts who seek a balance between cost and extreme performance.

Ready to support up to seven fans whom allow the structure to efficiently manage it’s internal cooling. Features SSD drive support, Watercooling support and much more.

FORM FACTOR: ATX / M-ATX

Sentey Seeker supports ATX / M-ATX motherboards and has room for up to seven PCI Expansion slots, all embedded in an easy to use tool-less design.

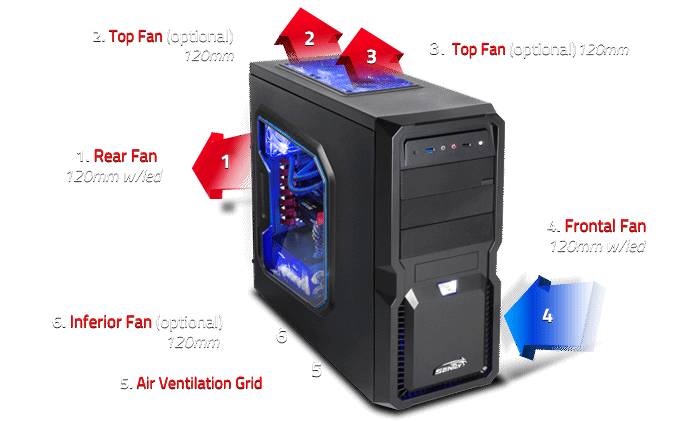

COOLING SYSTEM

The Sentey Eagle Plus a forward thinking and innovative design that addresses both the needs of a high end gamer and of a computer enthusiast. The case is designed to maintain a low ambient temperature inside the chassis and to optimize airflow from inside and outward.

The Sentey Eagle Plus supports up to 7 fans.

• Front: 1x120mm LED fan
• Rear: 1x120mm LED fan
• Top Panel: 2x120mm fan (optional)
• Bottom: 120/140mm fan (optinal)

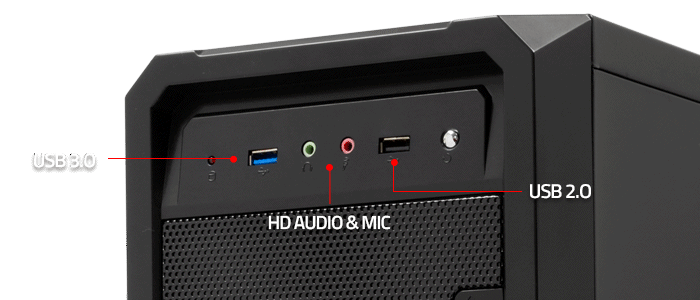

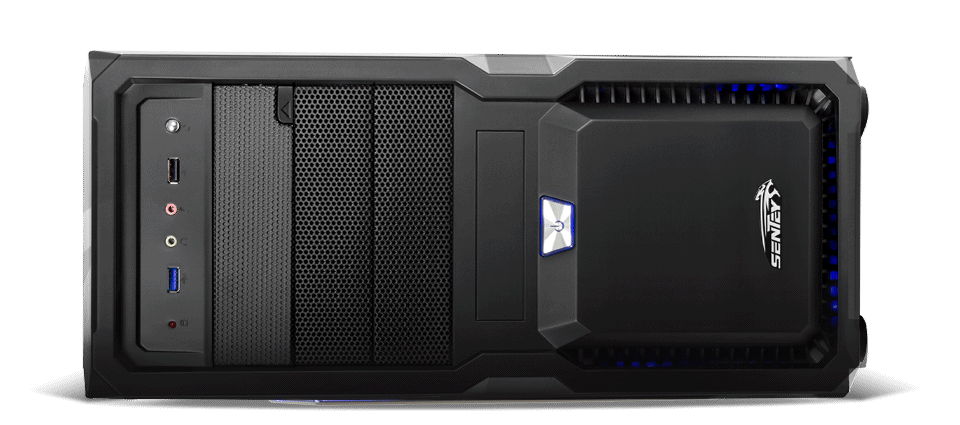

FRONT PORTS

The top of the case features ideally placed buttons and ports for easy access. All Input / Output ports are within reach. A USB 3.0 port + a USB 2.0 are accompanied by HD Audio and microphone ports. The power button and reset buttons, all very accessible to the user. The power button is centrally located in the front of the case.

• 1 USB 3.0 + 1 USB 2.0 Port
• HD Audio and Mic.
• LED Power button + Reset button

REMOVABLE ALUMINUM DRIVE BAYS

SUPPORTS 4 3.5" OR 2.5" HDDS

The Sentey Eagle Plus supports a total of four hard disk drives, Any combination of 3.5" and or 2.5” drives; SSD’s included.

REMOVABLE ALUMINUM TRAYS

The removable trays are made of aluminum, and support both mechanical and solid state hard disk drives. Each tray is independent and has the option to mount a slim 60mm fan for additional cooling.

BOTTOM MOUNTED DUST FILTER

A bottom mounted dust filter covers and filters the bottom openings of the case. It is simple to remove, making it very easy to clean it. This filter prevents dust from entering the inside of the chassis.

HONEYCOMB FAN GRILL OPENINGS:

1) Power supply grill
2) Lower fan grill
3) HDD grill

MAIS DETALHES

HIGH END GRAPHICS CARD SUPPORT

SUPPORTS UP TO 270MM LONG GRAPHICS CARDS

The case’s long length accommodates up to three HIGH END dual slot video cards that are 340mm long without any problem, thus satisfying even the most demanding gamer.

CPU COOLERS THAT ARE UP TO 150MM IN HEIGHT ARE SUPPORTED

It is increasingly common to use high-end CPU coolers whose height is larger than the standard included cooler. The case has capacity for coolers up to 150mm tall.

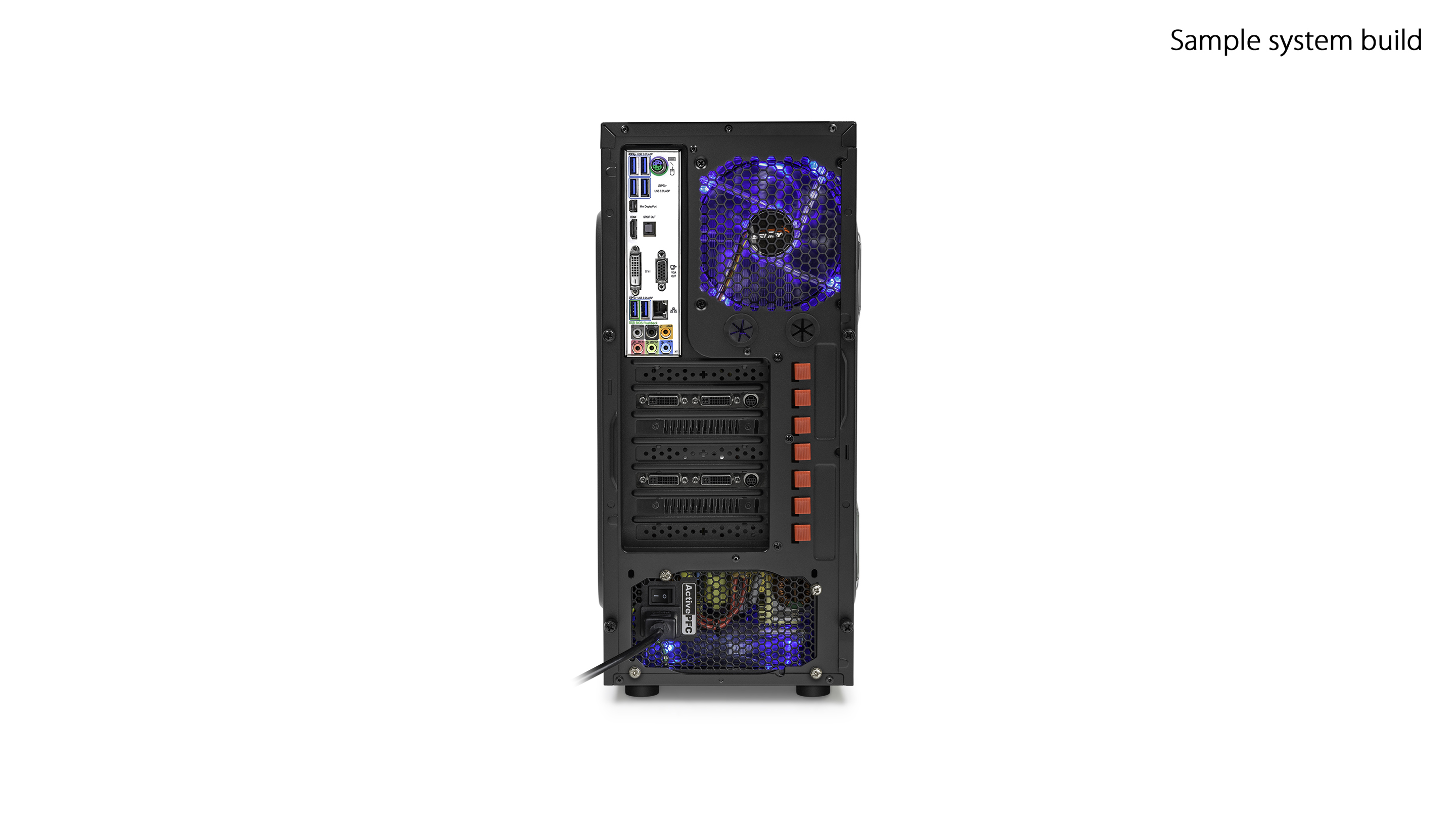

PSU MOUNTING

The power supply is mounted on the bottom rear of the case. There is a 120mm fan grill that allows the power supply to exhaust air from the bottom of the case, or mount the power supply up and intake air from inside the case. This versatility allows the case to be compatible with any power supply form factor in the market today. Playing the power supply fan downwards aligns it with the fan grill below that allows air to flow in an optimal way that prevents hot air from the power supply to enter the cabinet.

Power supply size is also not a problem for this case. Because of it’s location within the chassis, you can install even an extra large sized power supply without any problems.

TOOL-LESS DESIGN, QUICK TO INSTALL

PLASTIC TOOL-LESS BRACKETS

Allow the installation of 5.25” drive bay units, such as a BluRay optical drive to be mounted without the use of any tools.

ALUMINUM HDD TRAYS

Allow the quick installation of HDD’s.

PCI LOCKS

Allow the installation a VGA or PCI compliant expansion card without the need to use any tools.

ESPECIFICAÇÕES

CASE
Nome	Eagle Plus
Modelo	GS-6020 Plus
Série	GS-6020 Plus
Garantia	1 Year

STRUCTURE
Tipo	Mid Tower
Cor	Sandy Black
Material	SECC Steel
Suporta Placas	ATX, M-ATX
Montagem de Fonte	Rear Bottom
Tamanho de Watercooling	340mm
Tamaño máximo CPU cooler	150mm
Suporte de Watercooling	Yes, Dual Tube Passthrough
Motherboard Tray	Yes
Cabos Ocultos	Yes

EXTERIOR
Color	Sandy Black
Frente	Mesh
Pé	15mm Plastic Feet
Painel Lateral	Mesh
Painel Superior	Windows
Display LCD	No
Parafusos	Yes

EXPANSIONS
Bahias ext 5.25”	3
Bahias ext 3.5”	1
Bahias int 3.5”	4
Bahias int 2.5”	4
Slots de Expansão PCI	7

FRONT PORTS
USB 3.0	1
USB 2.0	1
Audio Frontal	HD Audio
E-sata	No
Sata Nativo	No
Leitor de Cartão	No
Controlador de Cooler	Dual

COOLING SYSTEM
Cooler frontal	1x120mm Blue LED Fan
Cooler lateral	No
Cooler lateral p/CPU	No
Cooler superior	2x120mm (Optional)
Cooler inferior	1x140mm/120mm (Optional)
Cooler Traseiro	1x120mm Blue LED Fan
Cooler para Baía de HDD	60mm Slim (optional)
