Dedicated single +12V rail
120mm Ultra- Quiet Fan
80 Plus Bronze Certified
WHERE TO BUY
80 Plus Bronze Certified
80 PLUS BRONZE CERTIFIED
Power supplies that are certified 80 plus offer more than 80% of power conversion efficiency at 20%, 50% and 100% of total Energy Load, and at a power factor of 0.9 or greater at 100% load. The 80 Plus Certification is an initiative to promote greater energy efficiency for computer power supplies.
The Metal Blade Power Series features 87% of energy conversion efficiency, and thus is certified 80 PLUS. In turn because the MBP Series is so power efficient, it can help reduce your electric costs significantly, while at the same time offering the power and performance you need.
MATTE BLACK PAINT JOB
The MBP550 Series features a special Matte Black scratch resistant coating that combined with it’s ample connectors provide a pleasing and imposing aesthetic.
HIGH EFFIENCY AND MAXIMUM COOLING
With a unique and functional design that combines modern aesthetics with the power of a high-end product, the MBP Series is fit for even the most demanding users.
ULTRA-SILENT FAN COOLING
120MM SLEEVE BEARING
The Metal Blade Power Series of Power Supplies utilize a 120mm Sleeve Bearing fan that automatically adjusts it’s speed to provide just the right amount of air flow, and balances noise for optimal operation. This variance in speed allows for lower noise and avoids unnecessary dB’s when the computer is not tasked or idle.
UNIVERSAL AC INPUT WITH ACTIVE PFC
100-240V 10A FULL RANGE

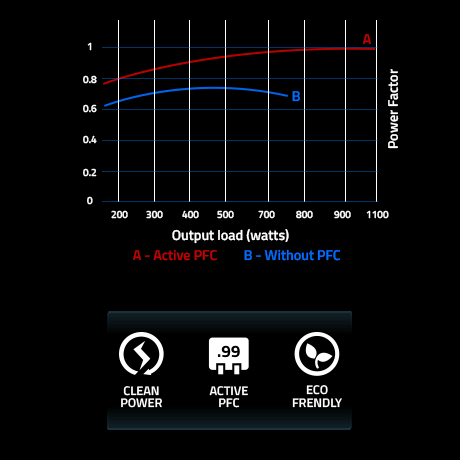

Metal Blade Power Series features an Active Power Factor Correction (PFC), that provides better power efficiency because it has a circuit that actively corrects the power factor, and balances the waveform of the input current.
ACTIVE POWER FACTOR CORRECTION
The Active PFC can achieve a power factor of .99. A higher power factor reduces any transmission loss of power, and improves the efficiency and energy used from the power source (wall) to the system’s components. An active PFC is an important environmentally friendly feature.
DEDICATED SINGLE +12V RAIL
The Metal Blade Power features a single dedicated +12V rail, that simplifies component installation by having all the power on a single line, avoiding having to manually balance component load on multiple rails, thus providing greater compatibility and is ready for the latest generation of graphic cards.
QUALITY MAIN CAPACITOR
The Metal Blade Power Series utilizes capacitors Teapo brand , with the principle capacitor rated at 85ºC, which offer unmatched performance and reliability, and have great operational lifetime.
The principle capacitor is made by Teapo, and are classified to operate at 85°C for maximum reliability and service life.
MULTI PROTECCIONS DESIGN
The MBP series features multiple safeguards such as over voltage protection, under voltage protection, overload protection and short circuit protection which when triggered activate to protect the power supply. They automatically shut down the power supply to prevent damage to your system and any attached devices. Ensuring safe safe and reliable operation. With an unbeatable 5 year warranty. The MBP Series solidifies itself as a high-end product.
EXTRA-LONG MESH CABLES
The native sleeving on the Metal Blade Power (MBP) protect the cables and prolong their service life by offering more useful and adequate insulation for mounting the cables inside the cabinet. The Nylon micro mesh fabric allows excellent ventilation which helps avoid any overheating issues.
AC Input and DC Output voltage values per rail
MBP550-HS’s Total Connectors
Native cable connectors distribution diagram.
|Series||Metal Blade Power|
|AC Input Current (A)||10A|
|AC Input Frequency (Hz)||50-60Hz|
|AC Input Voltage (Vac)||100-240Vac|
|Power Factor Corrector||>.99|
|Efficiency Typical Load||< 87%|
|Max Output Power (W)||550 W|
|Max -12V Output Current (A)||0,3 A|
|Max -12V Power (W)||3.6 W|
|Max +12V1 Output Current (A)||45 A|
|Max +12V1 Power (W)||540 W|
|Max +3.3V Output Current (A)||20 A|
|Max +5V Output Current (A)||20 A|
|Max +3.3V & +5V Power (W)||120 W|
|Max +5VSB Output Current (A)||3 A|
|Max +5VSB Power (W)||15 W|
|CPU +12V 4+4pin||1|
|Cooling Fan Size||120mm Sleeve Bearing|
|Dimensions||140mm (L) x 150mm (W) x 86mm (H)|
|Net Weight||2,35 Kg|
|Painting Finish||Sandy Black|
|Gross Weight||2,50 Kg|
|Pack Dimensions||325mm (L) x 210mm (W) x 100mm|
|Over Power Protection (OPP)||Si|
|Over Voltage Protection (OVP)||Si|
|Short Circuit Protection (SCP)||Si|
|Under Voltage Protection (UVP)||Si|
|TECHNOLOGIES & FEATURES|
|DC to DC Converter||Yes|
|Power Factor Corrector||Active|
|Sleeve Natives Cables||Yes|
|Power Cord Certified||Yes|
|CERTIFICATIONS & STANDARDS|
|Type||ATX 2.3 EPS 2.92|
