2 USB 2.0 + GLOSSY BLACK PAINT

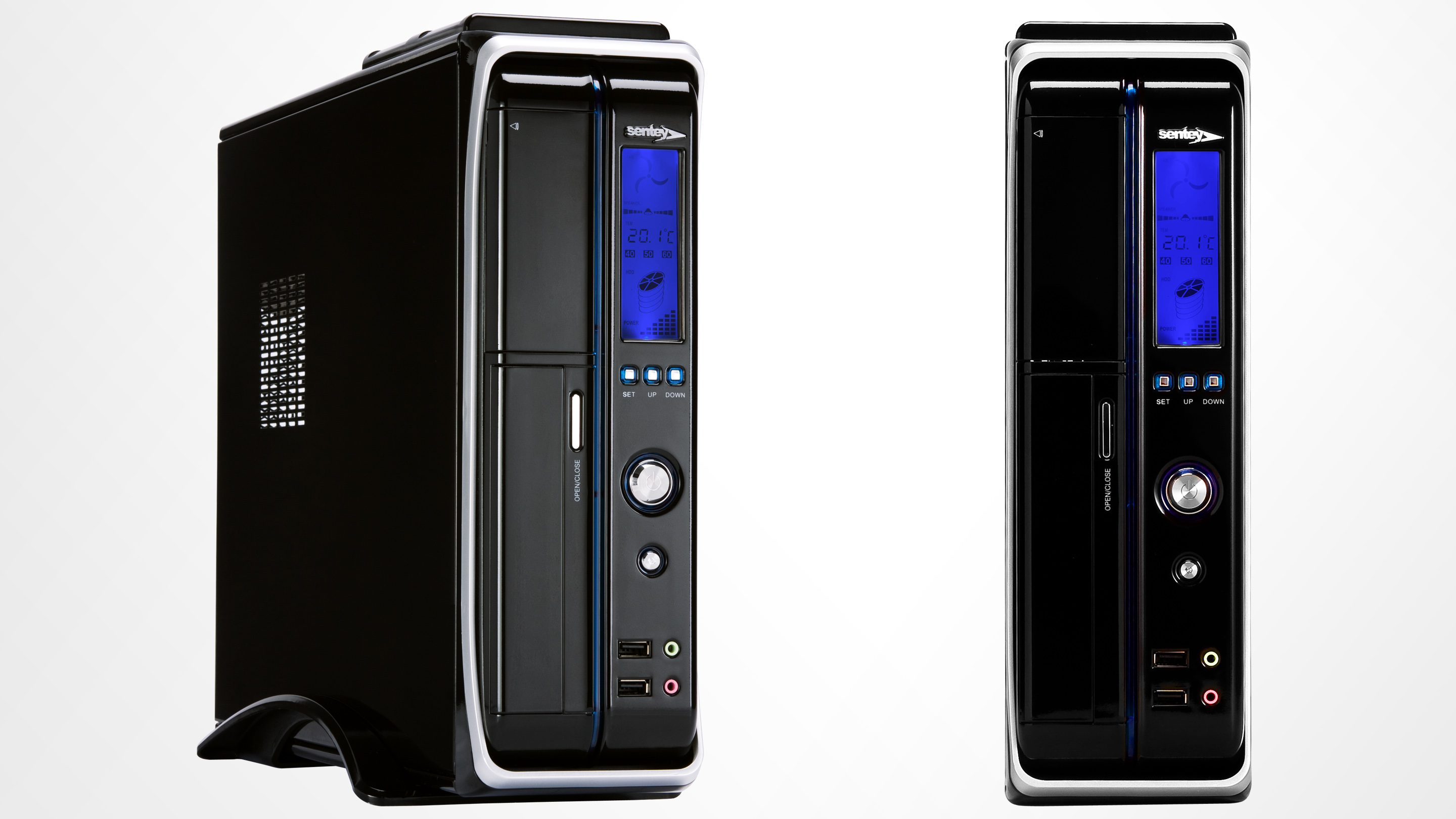

The Sentey SS1-2421 has on it’s front panel, 2 USB 2.0 Ports, Reset and Power buttons with LED indicator on the front of the case, as well as HD Audio and Microphone minijacks. It also features a Glossy Black Paint.

MORE INFO

COOLING SYSTEM

FAN + AIR VENTS

The Sentey SS1-2421 comes with a 80mm fan included, and three additonal vents.

MORE INFO

ACCESSORIES

Mounting Screws

All mounting screws needed for assembly of components are included

Speaker

Generates audible fault beeps / sounds at boot up.

Adhesive Feet

Allows the case to be used in horizontal orientation.

Security Lock

Allows the use of a lock or seal to prevent access.

AWARDS

SLIM FLEX PC

The Top Panel of the case is designed with several vents that allow hot air to be exhausted from inside the case without altering the case aesthetics.

GLOSSY BLACK PAINT

This case is coated with a High Gloss Black Paint. This shiny finish gives the case a mirror and ultra sleek appearance.

MICRO ATX SLIM FLEX CASE

The Sentey SS1-2421 supports Micro ATX motherboards and Low Profile Video Cards. It also comes with a SFX Power Supply included.

LCD DISPLAY + TEMPERATURE CONTROL

The case features a powerful LCD Display with 3 buttons that allows one to check the internal temperature and control all the internal fans.

SUPPORTS HDD + OPTICAL DRIVE + FDD

A specially designed tray houses all of 5.25” bay units. This allows you to install a HDD, an optical drive (DVD / Blu Ray) + any 3.5" units.

SECC 0.8MM STEEL

The case chassis is completely composed of laminated SECC 0.8MM Steel. It has a gray coating with all the edges rounded off to avoid cuts and injury during assembly.

MID TOWER CASE

This case is ideal for daily use for those users that require a small form factor/footprint computer that does not sacrifice aesthetics or quality.

Supports M-ATX and Low Profile Video Cards.

FORM FACTOR: M-ATX

Supports M-ATX motherboards and has room for up to seven PCI Expansion slots, all embedded in an easy to use tool-less design.

VENT OPENINGS:

1) HDD Grill
2) Rear fan Grill

SFX POWER SUPPLY WITH ON/OFF SWITCH

It is possible to install the power supply in a quick and easy manner by opening the top panel.

On the rear of the case lies the physical On/Off switch.

COOLING SYSTEM

80MM TOP FAN

The top panel has a 80mm fan mounted.

BOTTOM:

A bottom mounted grill allows fresh air to enter the case.

REAR:

A rear mounted grills allows cool air to cool the power supply.

TOP 80MM FAN + PSU GRILL

There are two cooling vents on the case’s top panel. One as a top cover that allows for easy and quick installation of the power supply, and the other as a 80mm fan grill for additional cooling capacity.

POWER SUPPLY IS INCLUDED

This case comes with the BCP450-OM Power Supply included. This steel power supply features shielded cables, a 115/230 V switch that allows international usage in any region, a 80mm fan, and a On and Off switch.

PSU INCLUDED: BCP450-OM

The BCP450-OM is a monorail design and supports up to 8A at it’s 12V main line.

Connectors: 2x SATA, 3x Molex, 1x FDD, 1x 4+4 pin, 12V pin, and 1 20+4 ATX mainboard connector.

SPECIFICATIONS

CASE
Name	SS1-2421
Model	SS1-2421
Part Number	SS1-2421
Warranty	1 Year

STRUCTURE
Type	Mid Tower
Color	Gray
Material	SECC 0.8mm Steel
Motherboard Compatibility	M-ATX
Power Supply Mounted	Front Top
VGA Max Length	160mm Low Profile
CPU Cooler Max. Size	80mm
Watercooling Support	No
Motherboard Tray	No
Cable Management	No

EXTERIOR
Color	Glossy Black
Front	Glossy
Feet	15mm Plastic Feet
Side Panel	Solid with Grill
Top Panel	Solid with Grill
LCD Display	Yes
Thumbscrews	Yes

EXPANSIONS
External 5.25” Drive Bays	1
External 3.5” Drive Bays	1
Internal 3.5” Drive Bays	1
Internal 2.5” Drive Bays	No
Expansion Slots	4

FRONT PORTS
USB 2.0	2
Audio	AC97
E-sata	No
SATA	No
Card Reader	No
Fan Controller	No

COOLING SYSTEM
Front Fan	No
Side Fan	No
Side CPU Fan	No
Top Fan	1x80mm
Bottom Fan	No
Rear Fan	No
HDD Bay Fan	No

PHYSICAL SPECS
Height	355mm
Width	104mm
Length	435mm
Net Weight	4.2kg
Gross Weight	5.0kg
Packaging	493mm (L) 161mm (A) 395mm (H)

POWER SUPPLY
Model	BCP450-OM
Type	ATX
Connectors	2 SATA, 3 Molex, 1 FDD

EXTRAS
Dust Filter	No

SS1-2421

DOWNLOAD HD PHOTO

DOWNLOAD COMPLETE GALLERY

Videos and reviews

Sentey SS1-2421 - Product Overview

http://www.hitechlegion.com/reviews/cases/10234 --Full review and benchmarks

The Sentey SS1-2421 case is part of Sentey's Slim Series lineup and comes with a 450W SFX12V power supply. The Sentey SS1-2421 can house a micro-ATX or ITX motherboard and up to four low profile PCI devices as an HTPC or an office computer. The front panel LCD on the Sentey SS1-2421 slim tower case features an automatic fan controller, temperature monitor and HDD activity display. The Sentey SS1-2421 has a dark high-quality glossy finish and maintains aesthetic uniformity at the front through the use of a built-in flip-down optical drive bezel. Designed to be slim and compact, the Sentey SS1-2421 is ideal for as an office computer or an HTPC.

Posted: 2011-05-24T22:32:04.000Z

Sentey Slim Series Review

Sentey Present Slim Series
- Elegant and practical design
- High Gloss Black paint
- Ventilated Topcover
- 2421 and 2422 with LCD DISPLAY To monitor temperature
- All the Slim Series support micro Atx. Up to 240mm x 240mm in size
- Included power supply

For more information visit www.sentey.com

Posted: 2010-09-23T13:09:06.000Z

REVIEWS

06-01-2011 . SS1-2421 Slim Case Review by Hi Tech Legion

After we were impressed by the value of the Sentey Arvina full tower case that we previously reviewed, expectations were high, even before opening the Sentey SS1-2421 slim tower ca...

VIEW REVIEW

09-23-2010 . Cases Slim Series Video Review by Sentey Inc

Sentey Present Slim Series - Elegant and practical design - High Gloss Black paint - Ventilated Topcover - 2421 and 2422 with LCD DISPLAY To monitor temperature - All the Sl...

VIEW REVIEW
