M-ATX Support
LCD Display
SECC 0.8mm Steel
Power Supply Included
U$S
79.99
WHERE TO BUY
2 USB 2.0 + GLOSSY BLACK PAINT

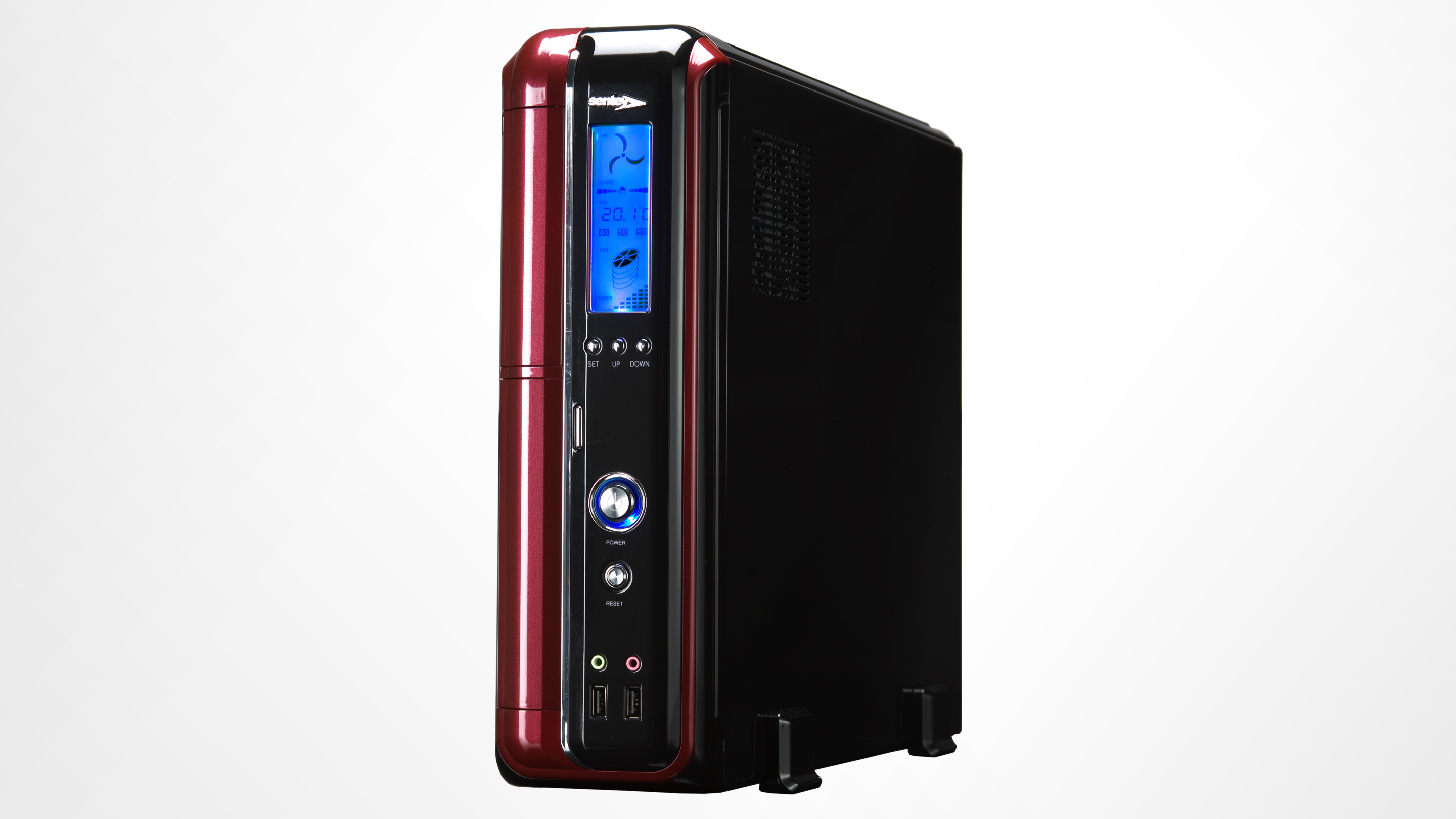

The Sentey SS1-2422 has on it’s front panel, 2 USB 2.0 Ports, Reset and Power buttons with LED indicator on the front of the case, as well as HD Audio and Microphone minijacks. It also features a Glossy Black Paint.
COOLING SYSTEM
FAN + AIR VENTS
The Sentey SS1-2422 comes with a 80mm fan included, and three additonal vents.
ACCESSORIES
Mounting Screws
All mounting screws needed for assembly of components are included
Speaker
Generates audible fault beeps / sounds at boot up.
Adhesive Feet
Allows the case to be used in horizontal orientation.
Security Lock
Allows the use of a lock or seal to prevent access.
AWARDS
SLIM FLEX PC
The Top Panel of the case is designed with several vents that allow hot air to be exhausted from inside the case without altering the case aesthetics.
GLOSSY BLACK PAINT
This case is coated with a High Gloss Black Paint. This shiny finish gives the case a mirror and ultra sleek appearance.
MICRO ATX SLIM FLEX CASE
The Sentey SS1-2422 supports Micro ATX motherboards and Low Profile Video Cards. It also comes with a SFX Power Supply included.
LCD DISPLAY + TEMPERATURE CONTROL
The case features a powerful LCD Display with 3 buttons that allows one to check the internal temperature and control all the internal fans.
SUPPORTS HDD + OPTICAL DRIVE + FDD
A specially designed tray houses all of 5.25” bay units. This allows you to install a HDD, an optical drive (DVD / Blu Ray) + any 3.5" units.
SECC 0.8MM STEEL
The case chassis is completely composed of laminated SECC 0.8MM Steel. It has a gray coating with all the edges rounded off to avoid cuts and injury during assembly.
MID TOWER CASE
This case is ideal for daily use for those users that require a small form factor/footprint computer that does not sacrifice aesthetics or quality.
Supports M-ATX and Low Profile Video Cards.
FORM FACTOR: M-ATX
Supports M-ATX motherboards and has room for up to seven PCI Expansion slots, all embedded in an easy to use tool-less design.
VENT OPENINGS:
1) HDD Grill
2) Rear fan Grill
2) Rear fan Grill
SFX POWER SUPPLY WITH ON/OFF SWITCH
It is possible to install the power supply in a quick and easy manner by opening the top panel.
On the rear of the case lies the physical On/Off switch.
COOLING SYSTEM
80MM TOP FAN
The top panel has a 80mm fan mounted.
BOTTOM:
A bottom mounted grill allows fresh air to enter the case.
REAR:
A rear mounted grills allows cool air to cool the power supply.
TOP 80MM FAN + PSU GRILL
There are two cooling vents on the case’s top panel. One as a top cover that allows for easy and quick installation of the power supply, and the other as a 80mm fan grill for additional cooling capacity.
POWER SUPPLY IS INCLUDED
This case comes with the BCP450-OM Power Supply included. This steel power supply features shielded cables, a 115/230 V switch that allows international usage in any region, a 80mm fan, and a On and Off switch.
PSU INCLUDED: BCP450-OM
The BCP450-OM is a monorail design and supports up to 8A at it’s 12V main line.
Connectors: 2x SATA, 3x Molex, 1x FDD, 1x 4+4 pin, 12V pin, and 1 20+4 ATX mainboard connector.
SPECIFICATIONS
| CASE | |
| Name | SS1-2422 |
| Model | SS1-2422 |
| Part Number | SS1-2422 |
| Warranty | 1 Year |
| STRUCTURE | |
| Type | Mid Tower |
| Color | Gray |
| Material | SECC 0.8mm Steel |
| Motherboard Compatibility | M-ATX |
| Power Supply Mounted | Front Top |
| VGA Max Length | 160mm Low Profile |
| CPU Cooler Max. Size | 80mm |
| Watercooling Support | No |
| Motherboard Tray | No |
| Cable Management | No |
| EXTERIOR | |
| Color | Glossy Black |
| Front | Glossy |
| Feet | 15mm Plastic Feet |
| Side Panel | Solid with Grill |
| Top Panel | Solid with Grill |
| LCD Display | Yes |
| Thumbscrews | Yes |
| EXPANSIONS | |
| External 5.25” Drive Bays | 1 |
| External 3.5” Drive Bays | 1 |
| Internal 3.5” Drive Bays | 1 |
| Internal 2.5” Drive Bays | No |
| Expansion Slots | 4 |
| FRONT PORTS | |
| USB 2.0 | 2 |
| Audio | AC97 |
| E-sata | No |
| SATA | No |
| Card Reader | No |
| Fan Controller | No |
| COOLING SYSTEM | |
| Front Fan | No |
| Side Fan | No |
| Side CPU Fan | No |
| Top Fan | 1x80mm |
| Bottom Fan | No |
| Rear Fan | No |
| HDD Bay Fan | No |
| PHYSICAL SPECS | |
| Height | 355mm |
| Width | 104mm |
| Length | 435mm |
| Net Weight | 4.2kg |
| Gross Weight | 5.0kg |
| Packaging | 493mm (L) 161mm (A) 395mm (H) |
| POWER SUPPLY | |
| Model | BCP450-OM |
| Type | ATX |
| Connectors | 2 SATA, 3 Molex, 1 FDD |
| EXTRAS | |
| Dust Filter | No |
