5 Year Waranty
+12V Single Rail
140mm LED Ball Bearing Fan
80 Plus Bronze Certified
U$S .00
WHERE TO BUY
80 PLUS GOLD CERTIFICATION
The Metal Blade Power Series features up to 87% efficiency, and meets the requirements to be 80 Plus Bronze Certified. Because the MBP Series is so power efficient, it can help reduce your electrical costs significantly, while at the same time offering the power and performance you need.
MODULAR DESIGN
The Metal Blade Power series is designed to utilize a modular cable system. This system reduces the amount of clutter and obstruction of air inside the chassis by eliminating unnecessary cables. This modular design also simplifies installation by allowing the user the flexibility to pick and choose which cables to use on an as needed basis. This versatility plus the secure locking mechanism on each cable provides the Metal Blade Power Series with unmatched performance and reliability.
ROBUST 12V SINGLE RAIL DESIGN
The Metal Blade Power Series 650W Power Supply features an unique and dedicated +12V, 46A Rail that simplifies component installation by having all the power on a single line, avoiding having to manually balance component load on multiple rails, thus providing greater compatibility and is ready for the latest generation of graphic cards.
Certifications
80 PLUS BRONZE CERTIFIED
Power supplies that are certified 80 plus offer more than 80% of power conversion efficiency at 20%, 50% and 100% of total Energy Load, and at a power factor of 0.9 or greater at 100% load. The 80 Plus Certification is an initiative to promote greater energy efficiency for computer power supplies.
The Metal Blade Power Series features 84% of energy conversion efficiency, and thus is certified 80 PLUS. In turn because the MBP Series is so power efficient, it can help reduce your electric costs significantly, while at the same time offering the power and performance you need.
MODULAR CABLE MANAGEMENT SYSTEM
The Metal Blade Power Series has been designed to be modular, thus allowing the user to install the cables on an as needed basis. Saving space while reducing the amount of obstructions inside the case, and maximizing airflow within. The modular design also simplifies installation, as it allows the flexibility of installing only the cables needed. This modular design features solid locking connectors that provide the system optimal system performance and stability.
SECURE CABLE CONNECTION
The Metal Blade Power series features a locking secure mechanism for connecting any of the modular cables to the power supply. All cables connect effortlessly yet are locked securely in place. The connector pins are arranged that both female and male ends must match. This safeguard prevents any erroneous connections that would otherwise damage any devices connected.
140MM SLEEVE BEARING LED FAN
The Metal Blade Power Series of Power Supplies utilize a 140mm Sleeve Bearing LED fan that automatically adjusts it’s speed to provide just the right amount of air flow, and balances noise for optimal operation. This variance in speed allows for lower noise and avoids unnecessary dB’s when the computer is not tasked or idle.
Sleeve Bearing Fans are designed for long continuous operation and have a longer service life compared to conventional fans.
The Power Supply’s Intelligent Fan Control System allows for a reduction of noise during normal operation as shown on the diagram on the side.
ROBUST SINGLE +12V RAIL
The Metal Blade Power features a single dedicated +12V rail, that simplifies component installation by having all the power on a single line, avoiding having to manually balance component load on multiple rails, thus providing greater compatibility and is ready for the latest generation of graphic cards.
ACTIVE POWER FACTOR CORRECTION (PFC)
Metal Blade Power Series features an Active Power Factor Correction (PFC), that provides better power efficiency because it has a circuit that actively corrects the power factor, and balances the waveform of the input current.
The Active PFC can achieve a power factor of .99. A higher power factor reduces any transmission loss of power, and improves the efficiency and energy used from the power source (wall) to the system’s components. An active PFC is an important environmentally friendly feature.
ELECTROLYTIC CAPACITORS
The Metal Blade Power Series utilizes capacitors best brand , with the principle capacitor rated at 105ºC, which offer unmatched performance and reliability, and have an operational lifetime that is 4 times greater than conventional 85ºC capacitors.
The principle capacitors are made by Teapo, and are classified to operate at 105°C for maximum reliability and service life.
MULTI SAFEGUARD DESIGN
The MBP series features multiple safeguards such as over voltage protection, under voltage protection, overload protection and short circuit protection which when triggered activate to protect the power supply. They automatically shut down the power supply to prevent damage to your system and any attached devices. Ensuring safe safe and reliable operation. With an unbeatable 5 year warranty. The MBP Series solidifies itself as a high-end product.
FLAT AND SLEEVED CABLES
NYLON SLEEVED NATIVE CABLE
The native sleeving on the Metal Blade Power Series (MBP) protect the cables and prolong their service life by offering more useful and adequate insulation for mounting the cables inside the cabinet.
FLAT MODULAR CABLES
The exclusive FLAT Modular cables provide an exceptional low footprint, and thus allow advantageous positioning of the cables inside the case, without compromising airflow.
CONNECTORS
MBP650-HM’s Total Connectors

CONNECTORS DIAGRAM
Native and Modular cable connectors distribution diagram.
SPECIFICATIONS LABEL
AC Input and DC Output voltage values per rail
SANDY BLACK PAINT JOB
The MBP650 features a special Sandy Black scratch resistant coating that combined with it’s ample connectors provide a pleasing and imposing aesthetic.
With a unique and functional design that combines modern aesthetics with the power of a high-end product, the Metal Blade Power Series is fit for even the most demanding users.
SPECIFICATIONS
GENERAL
Series Metal Blade Power
Modelo MBP650-HM
Part Number MBP650-HM
EAN 788329906509
Garantía 5 Years
AC INPUTS
AC Input Current (A) 10A
AC Input Frequency (Hz) 50-60Hz
AC Input Voltage (Vac) 100-240Vac
Power Factor Corrector >.99
Efficiency Typical Load > 85%
LOAD RANGE
Max Output Power (W) 650 W
Max -12V Output Current (A) 0,3 A
Max -12V Power (W) 3.6 W
+12V Rail Single
Max +12V1 Output Current (A) 46 A
Max +12V1 Power (W) 552W
Max +3.3V Output Current (A) 22 A
Max +5V Output Current (A) 22 A
Max +3.3V & +5V Power (W) 130 W
Max +5VSB Output Current (A) 3 A
Max +5VSB Power (W) 15 W
CONNECTORS
Motherboard 20+4pin 1
CPU +12V 4+4pin 1
SATA 5pin 6
Molex 4pin 4
Floppy 4pin 1
PCI-E 6pin 1
PCI-E 6+2pin 1
PHYSICAL SPECS
Cooling Fan Size 140mm Ball Bearing LED Fan

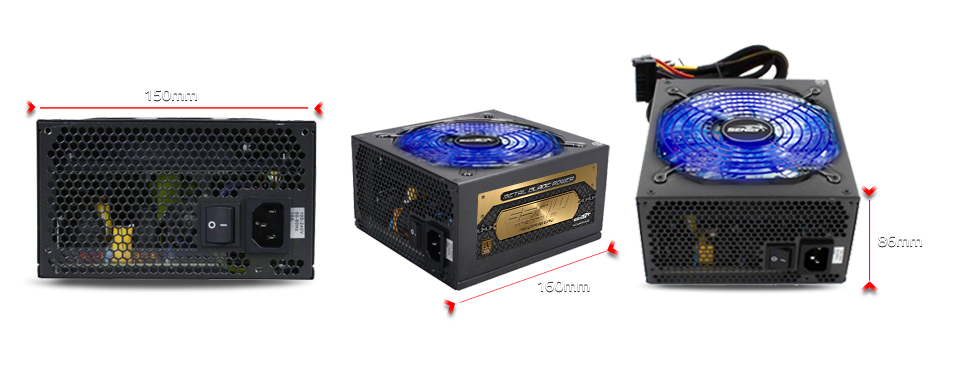

Dimensions 160mm (L) x 150mm (W) x 86mm (H)
Net Weight 2,12 Kg
Painting Finish Sandy Black
Form Factor ATX
Gross Weight 2, 75 Kg
Pack Dimensions 325mm (L) x 210mm (W) x 100mm
PROTECTIONS
Over Power Protection (OPP) Yes
Over Voltage Protection (OVP) Yes
Short Circuit Protection (SCP) Yes
Under Voltage Protection (UVP) Yes
TECHNOLOGIES & FEATURES
Modular Hybrid
AMD Crossfire Ready
NVIDIA SLI Ready
Power Factor Corrector Active
Modular Flat Cables Yes
Sleeve Natives Cables Yes
Power Cord Certified Yes
CERTIFICATIONS & STANDARDS
80 Plus Bronze
Type ATX 2.3 EPS 2.92
RoHs Yes
EuP Yes
C-tick Yes
CB Yes
CCC Yes
CUL Yes
FCC Yes
TUV Yes
